PC Corrugated Sheet Making Machine
Technical parameter:
| NO. | Name | Quantity |
| 1 | SJ120/38 Single screw extruder | 1 set |
| 2 | Gear pump and T-die | 1 set |
| 3 | Three-roller calendar | 1 set |
| 4 | Cooling bracket | 1 set |
| 5 | Corrugated forming machine | 1 set |
| 6 | Haul off machine | 1 set |
| 7 | Cutting machine | 1 set |

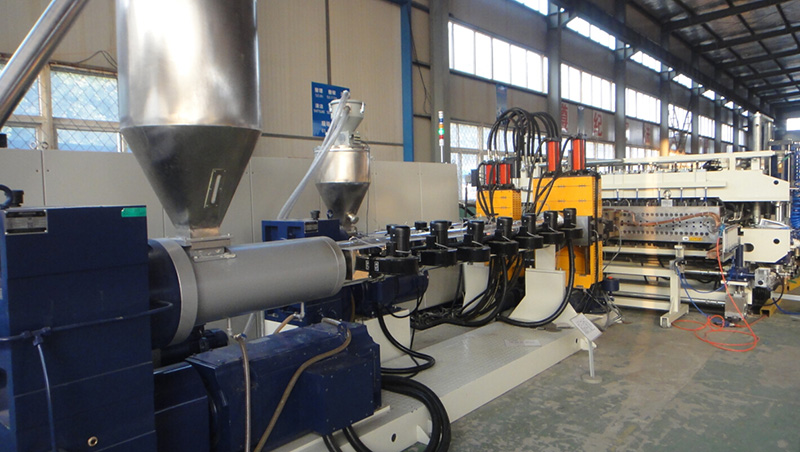

PC Corrugated sheet making machine: SJ120/38 Single screw extruder
(1) Motor: Siemens
(2) Inverter: ABB/Delta
(3) Contactor: Siemens
(4) Relay: Omron
(5) Breaker: Schneider
(6) Heating method: Cast aluminum heating
(7) Material of screw and barrel: 38CrMoAlA.

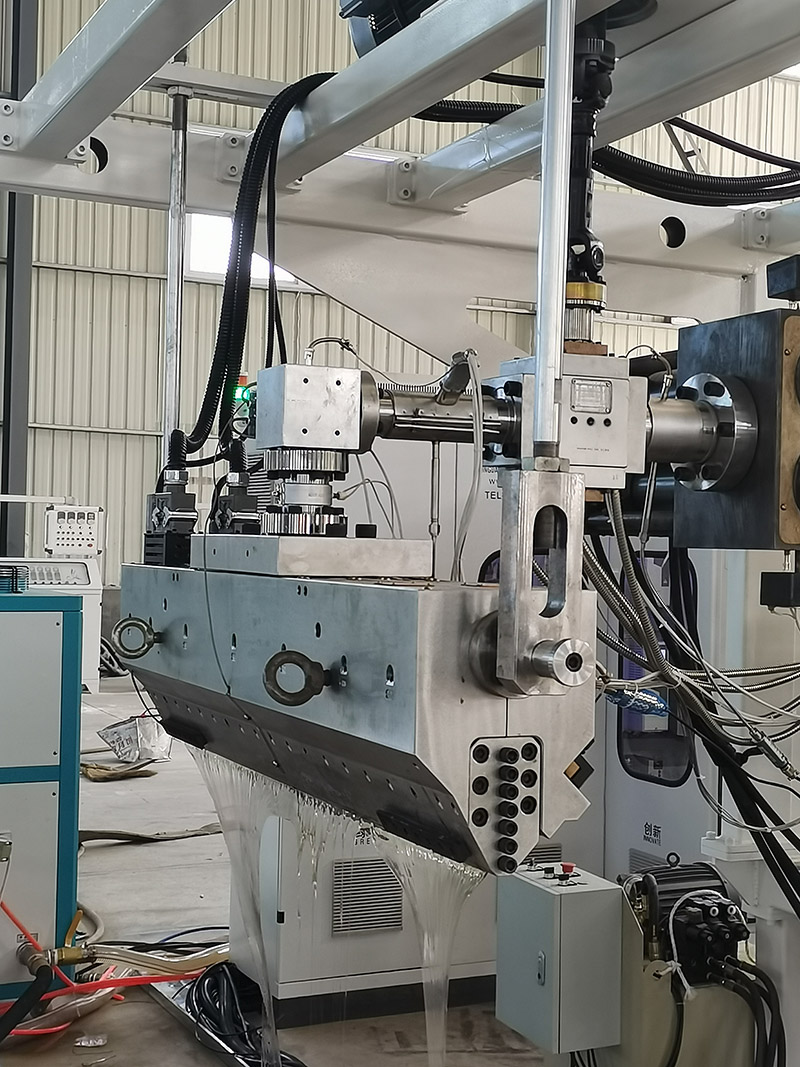

PC Corrugated sheet making machine: Gear pump
(1) Motor power:15kw
(2) Material of Gear pump: high strength steel alloy
PC Corrugated sheet making machine: T-die
(1) Product thickness: 0.5-1.2mm
(2) Material of Gear pump: high strength steel alloy

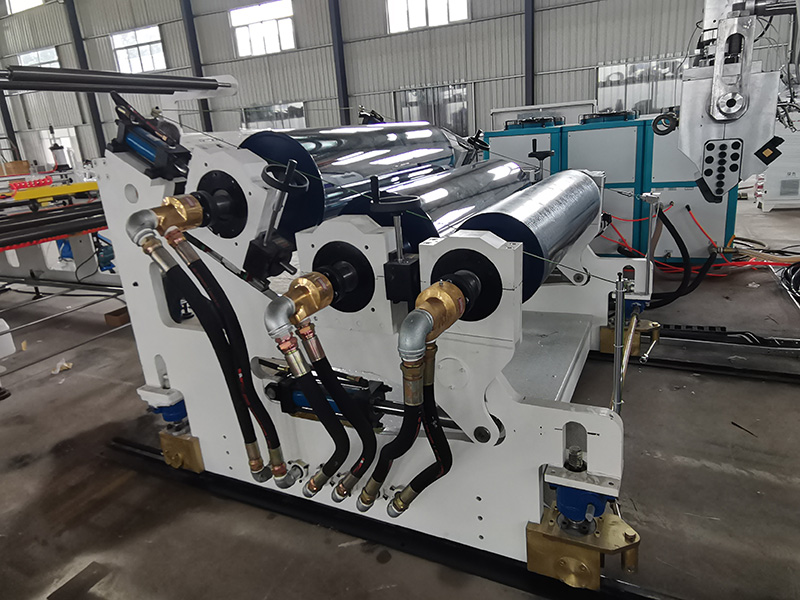

PC Corrugated sheet making machine: Three-roller calendar
(1) Roller length: 1300mm
(2) Max. Roller diameter: Ø400mm
(3) Line speed: 2.2 m/min

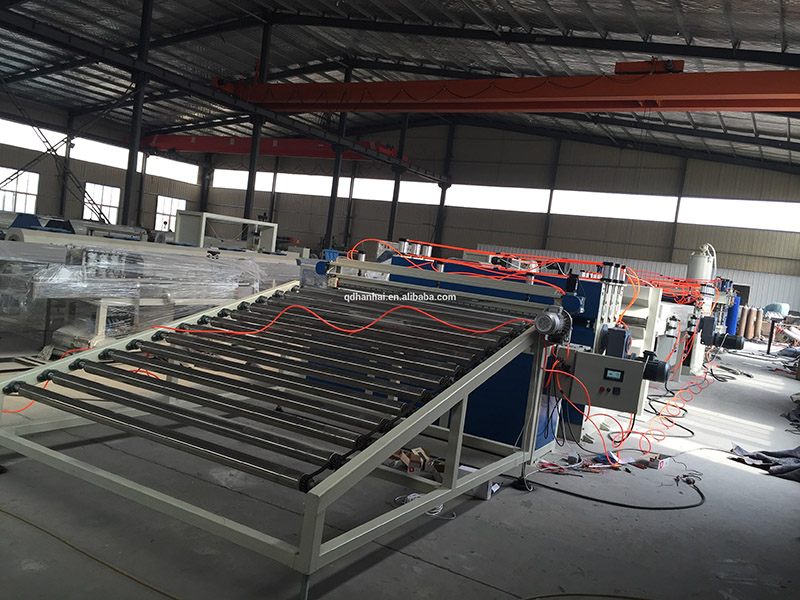

PC Corrugated sheet making machine: Cooling bracket

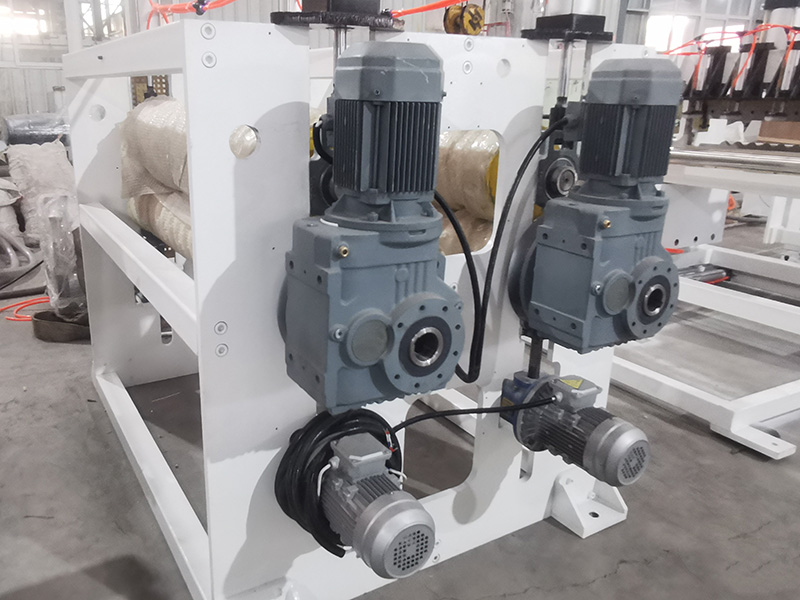

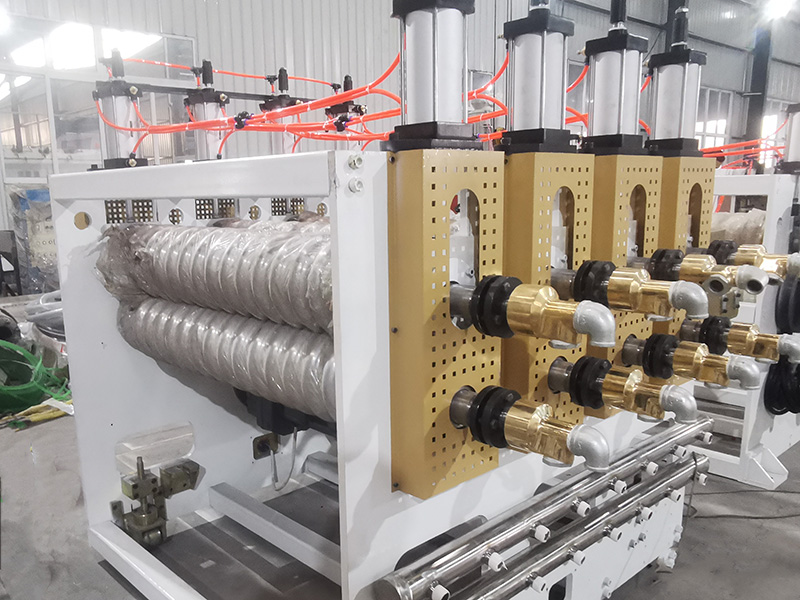

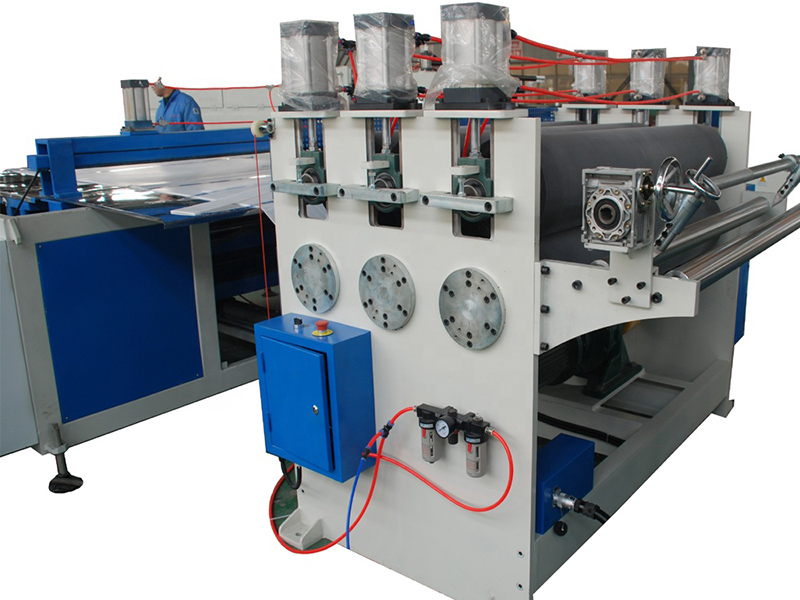

PC Corrugated sheet making machine: Corrugated forming machine
(1) corrugated shaping roller q'ty: 5 pcs
(2) No.1 and No.2 drive motor: 1.5kw
(3) No.3，No.4 and No.5 drive motor: 3kw

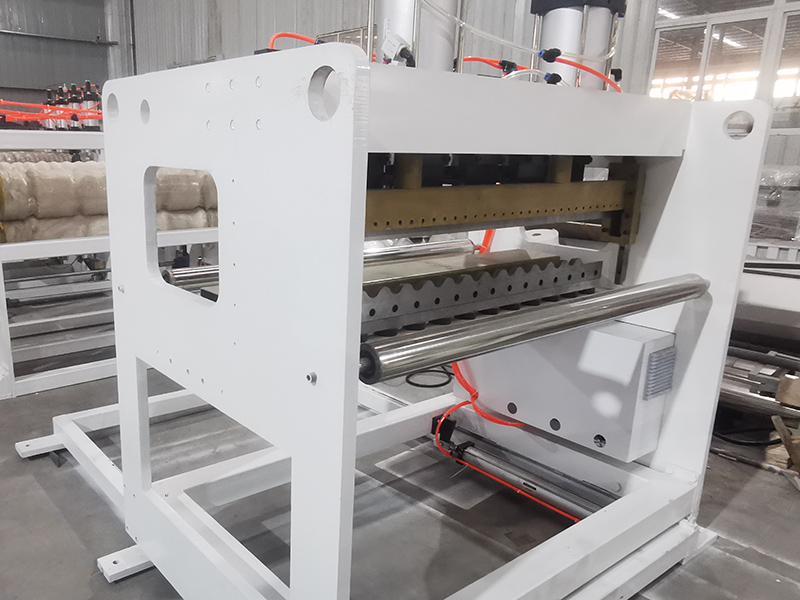

PC Corrugated sheet making machine: Haul off unit
(1) Drive motor: 2.9kw AC servo motor
(2) Roller specification:Ф250×1500mm
PC Corrugated sheet making machine: Cutting machine
(1) Motor POWER: 1.1kw
(2) Knife: 2pcs

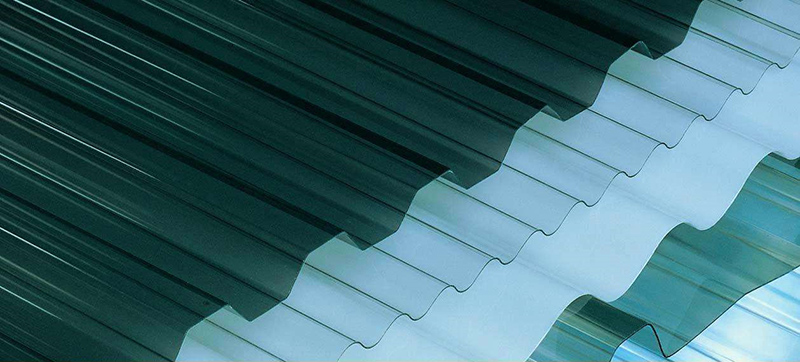

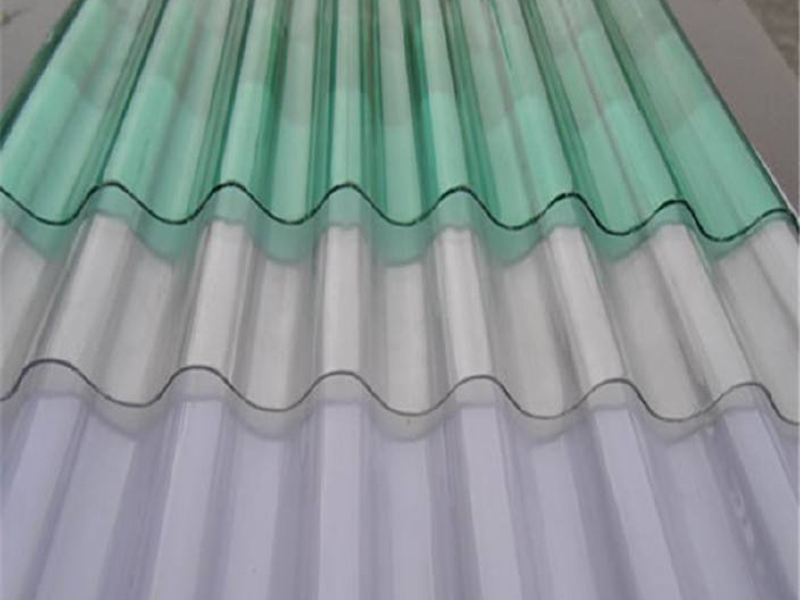

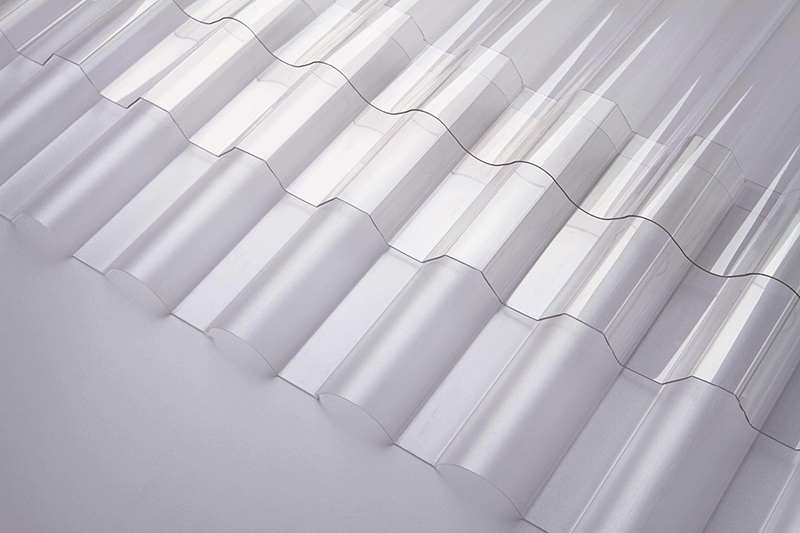

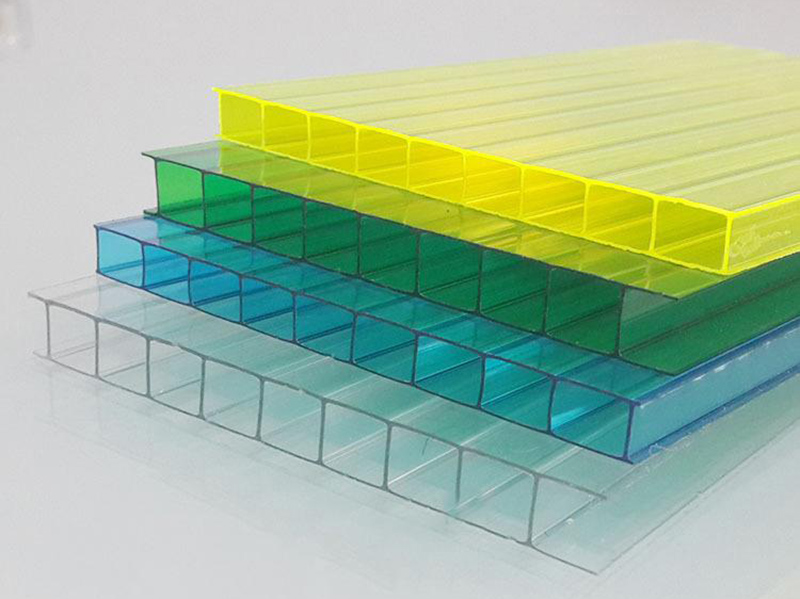

Final product:
