Plastic Extruder Laser Printer Machine
  • Plastic Extruder Laser Printer Machine
  • Plastic Extruder Laser Printer Machine
  • Plastic Extruder Laser Printer Machine

Plastic Extruder Laser Printer Machine

Plastic Extruder Laser Printer Machine is use high energy density aggregation in carved the underlying surface, within a very short period of time make the surface of biomass gasification by controlling the effective displacement of the laser beam, precisely burning and carving out exquisite patterns or characters. Reduce production costs, no consumption, high efficiency, permanent mark to ensure that the product can be traced back. Enhance the additional value and brand effect. Performance is more stable, work continuously for 24 hours and the maintenance time of the laser is more than 100,000 hours. Environmentally friendly non-toxic and no noise pollution.

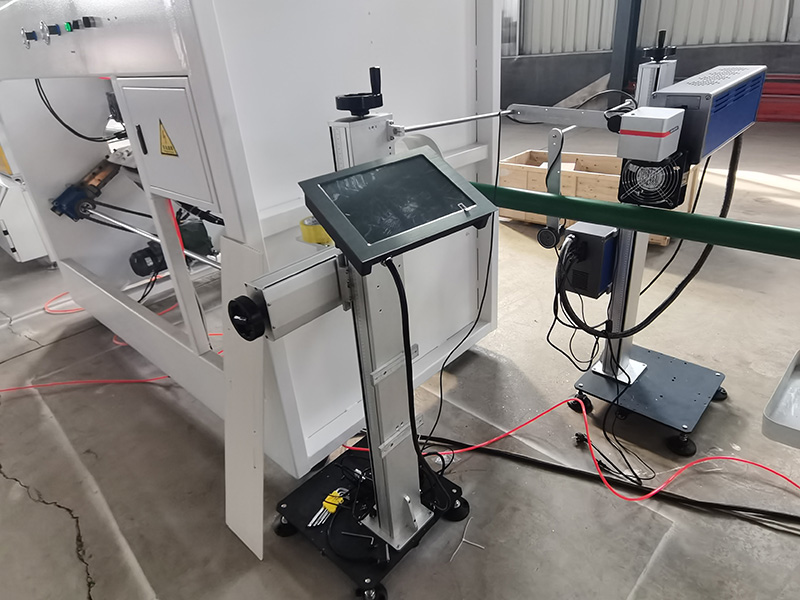

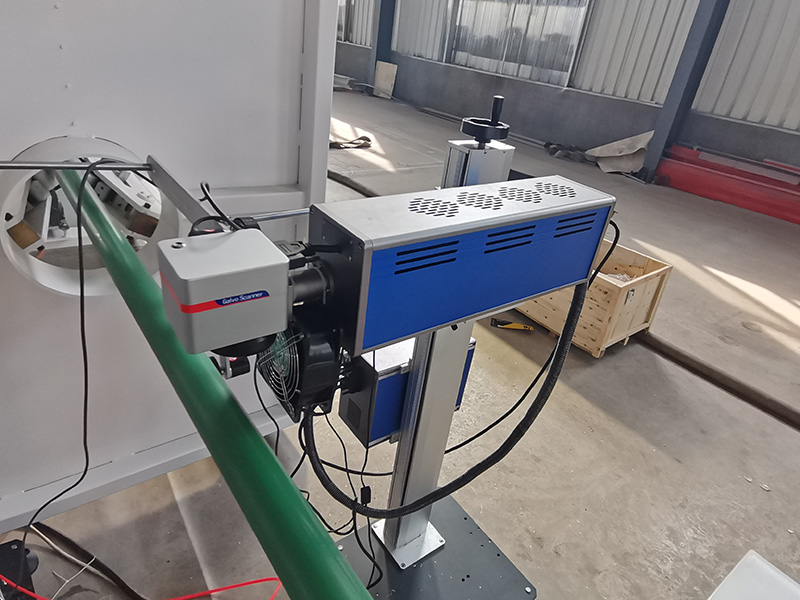

Plastic Extruder Laser Printer Machine is suitable for plastic PE and PVC pipe ,plastics sheet,board productions,especially for moldels and automatic assembly line to print Brand,size ,spec and barcode etc.

Plastic Extruder Laser Printer Machine

Plastic Extruder Laser Printer Machine


Technical parameter:

Model Number
PL200
Table Size320*200mm
Weight30KG
MaterialAluminum
Laser Wavelength1060nm
Laser Power10W or 20W or 30W optional
Laser TypePulsed or continuous
Marking Depth≤0. 5mm as the material may
Marking Line Speed≤7000mm / s
Minimum Characters0.15mm
The minimum Line Width0.012mm
Repeatability±0.002
RepeatabilityStandard 100mmX100mm
Operating LifeLaser Run> 100,000 hours
Dimensions450 mm X 540 mm X 800 mm Weight 30 kg
Work Table320 mm X 200 mm bearing 30 kg
Lifting HeighLifting 150
Cooling SystemAir cooling
Operating SystemWinXP / Win7
Graphic ConverterCAD, CorelDRAW, CAXA
Environment-20 ° C-45 ° C, relative humidity 80%
