PP PE Pelletizing Granule Pellet Line
  • PP PE Pelletizing Granule Pellet Line
  • PP PE Pelletizing Granule Pellet Line
  • PP PE Pelletizing Granule Pellet Line
  • PP PE Pelletizing Granule Pellet Line
  • PP PE Pelletizing Granule Pellet Line

PP PE Pelletizing Granule Pellet Line

Waste recycling PP PE pelletizing granule pellet line is used for recycling of the used and waste plastic materials. It equipped with automatic constant temperature, electric changing filter nets. It also can pelletize the crushing material after fitting with a loader.
The cutting machine adopts speed regulating motor. Which can cut the material according to the feeding speed of the extruder. With such features as high output, low noise, stable performance and easy operation. It is a more ideal waste plastic film regenerative. Pelletizer.
ModelScrew Diameter(mm)Production Capacity(kg/h)Total Power(kw)
SJ100/28100120-18037
SJ120/28120220-30055
SJ150/28150300-40090
SJ200/28200450-600132


Technical parameter:

NO.NameQuantity
1
Single screw extruder with automatic loading device1 set
2Die head1 set
3Water tank1 set
4Strip ring die face cutter1 set

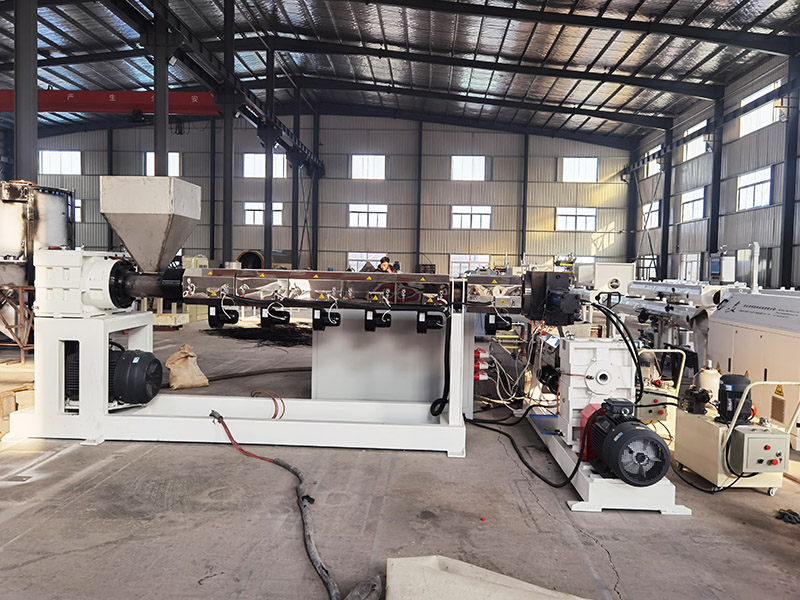

PP PE pelletizing granule pellet line: Single screw extruder with automatic loading device

Single screw extruder with automatic loading device

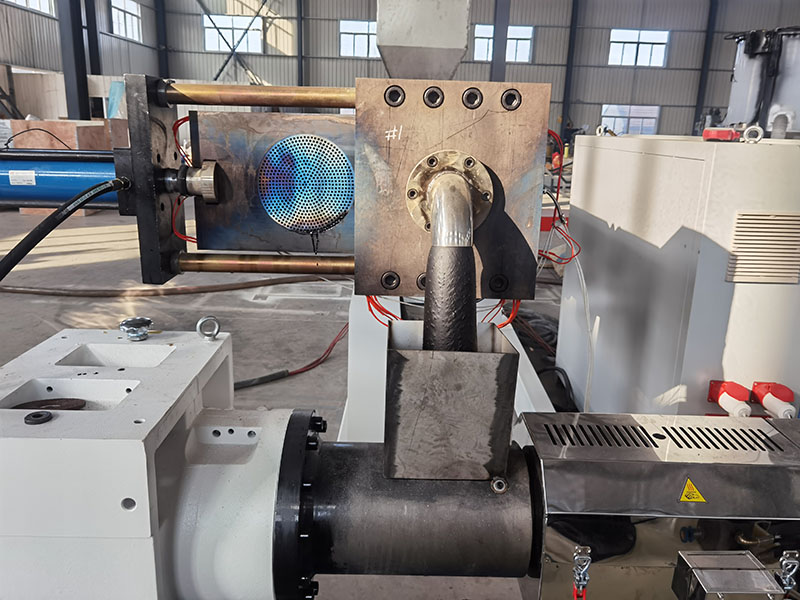

PP PE pelletizing granule pellet line: Die head

Die head

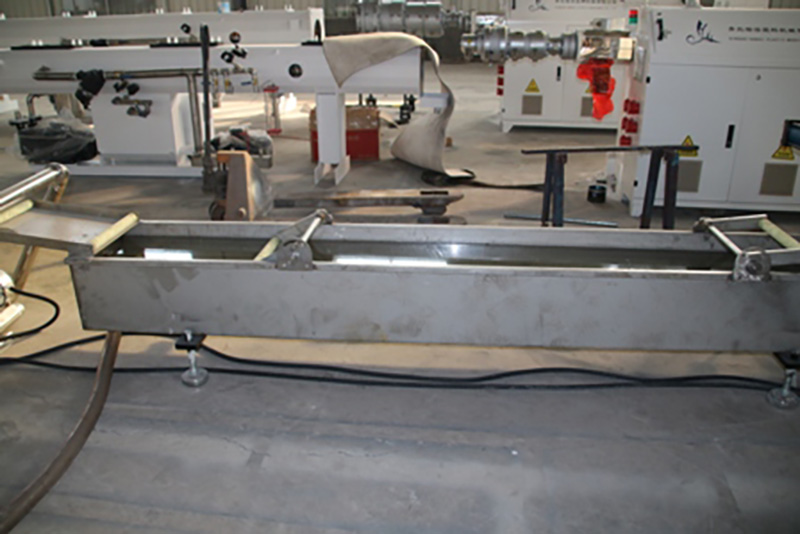

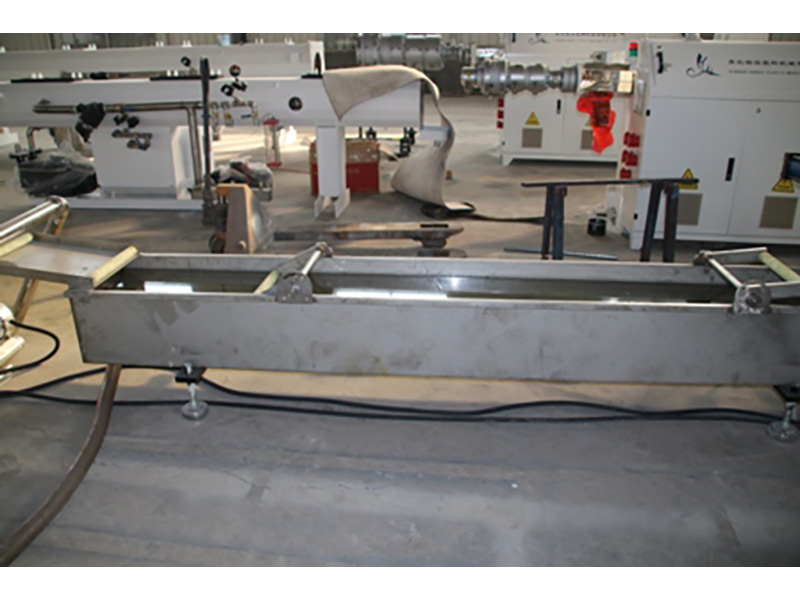

PP PE pelletizing granule pellet line: Water tank

Water tank

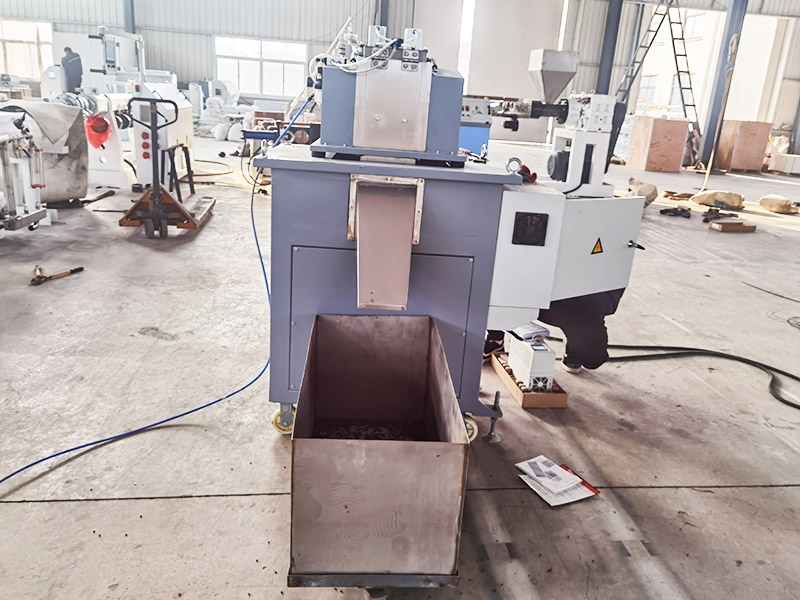

PP PE pelletizing granule pellet line: Strip ring die face cutter

Strip ring die face cutter

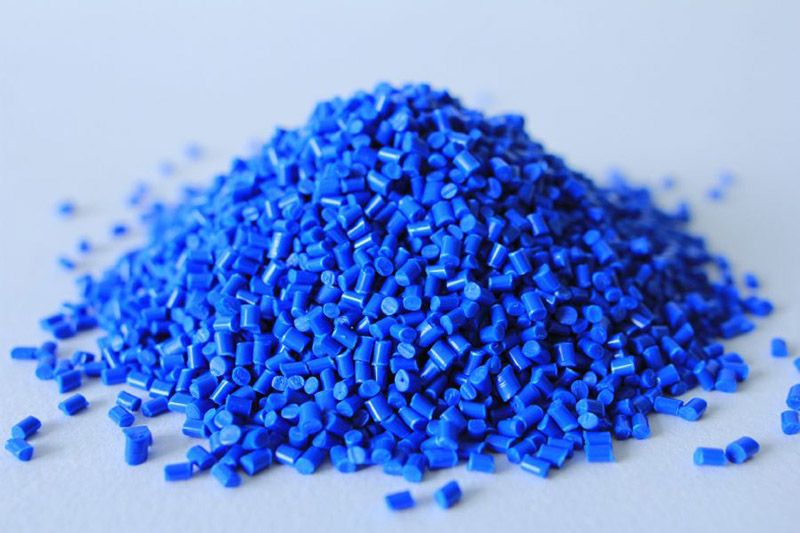

PP PE pelletizing granule pellet line: Final product

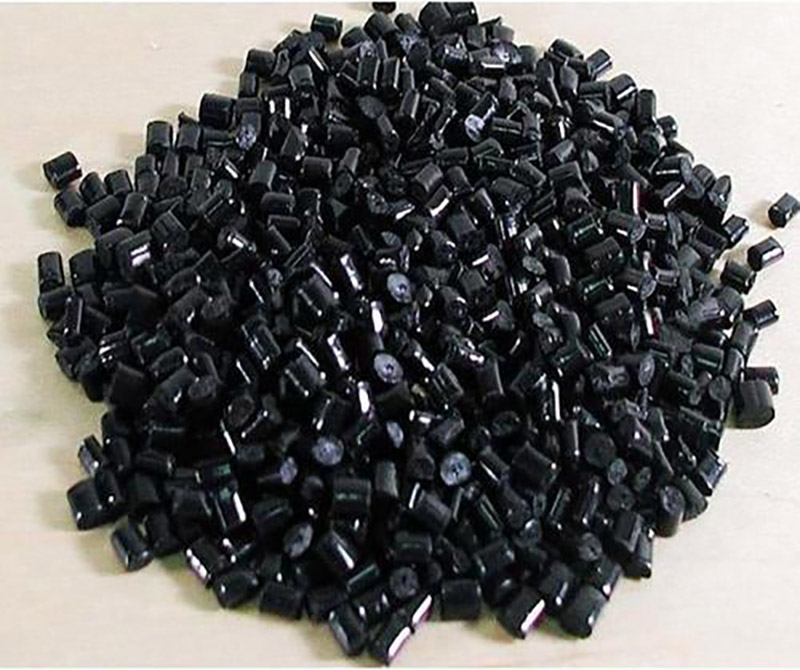

PP PE pelletizing granule pellet line: Final product

PP PE pelletizing granule pellet line: Final product
