PVC Artificial Sheet Making Machine

PVC Artificial Sheet Making Machine production line is one of the most advanced sheet production lines with the most advanced technology, the most mature technology, and the most stable equipment in China, which meets the increasingly stringent requirements of the market for plastic sheet.

Specifications:

ModelProducts Width (mm)Products Thickness(mm)Production Capacity (kg/h)Total Power(kw/h)
SJSZ80/156800~16000.3~3300~450160


Technical parameter:

NO.
SpecificationQuantity
1Automatic loading system1 set
2SJSZ80/156 conical double screw extruder1 set
3Mould1 set
4Three roll calender with temperature controller1 set
5Laminating device1 set
6Edge cutting unit1 set
7Hual off machine1 set
8Cutting machine1 set
9Auto stacker1 set

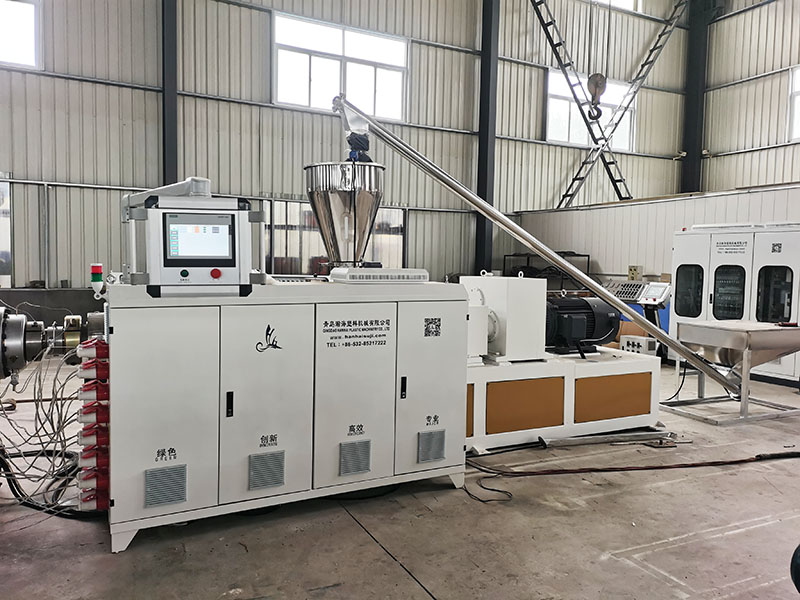

SJSZ80/156 conical double screw extruder with automatic loading system

PVC Artificial Sheet Making Machine：SJSZ80/156 conical double screw extruder with automatic loading system

· Big output & L/D ratio screw.

· Barrel is made of special steel alloy.

· Gears are made of steel alloy with heat treatment and are finished with surface precision grinding.

· AC motor, selected famous brand products.

· Controlled by ABB Inverter.

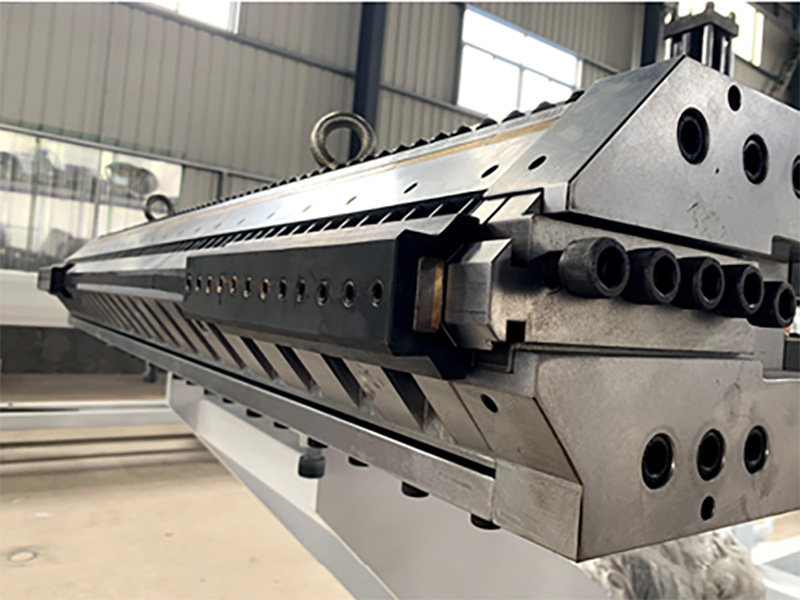

Mold

PVC Artificial Sheet Making Machine: Mold

· Coated with chrome & polished

· Alloyed mould steel material

· Heating rod

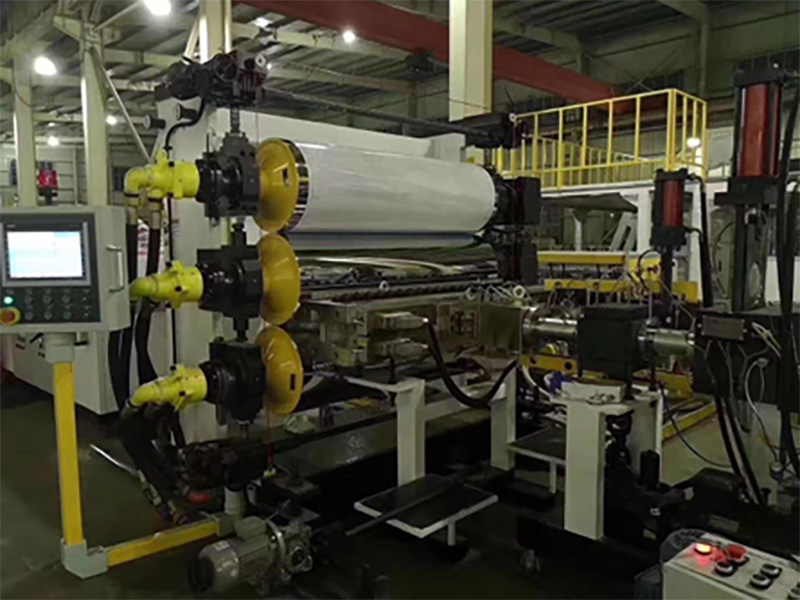

Three roller Calender and side winder with laminating equipemt

PVC Artificial Sheet Making Machine: Three roller Calender and side winder with laminating equipemt

· With emergency stop Adjusting method the roller space.

· Neumatic adjusting Temp-regulating of roller.

· Water-heating and cooling Blade method side cutting Electric part with CE certificate Temperature control system.

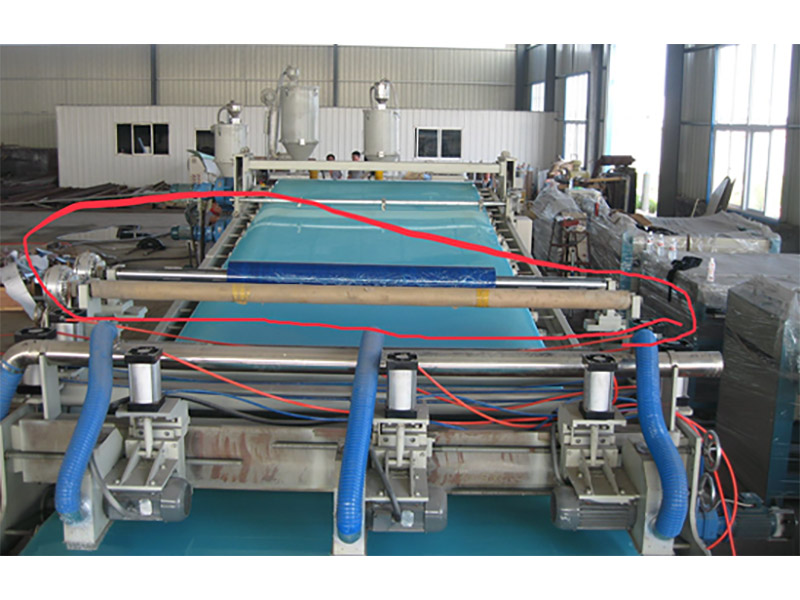

Bracket and Haul-off Machine

PVC Artificial Sheet Making Machine: Bracket and Haul-off Machine

· A pair of rubber rollers haul off.

· Speed adjustable control, the up and down rollers are synchronized via drive unit.

· With emergency stop.

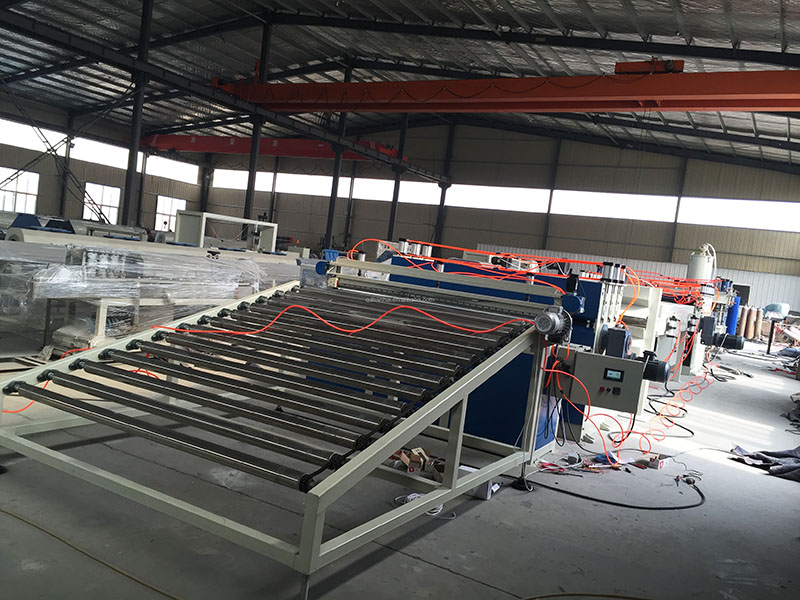

Cutting machine

PVC Artificial Sheet Making Machine: Cutting machine

· With Digital Meters, automatic control cutting length.

· Pneumatic system.

· Push cylinder.

· Knife.


PVC Artificial Sheet Making Machine: Final product bracket with robot hands

· Material stainless steel

· Dimension 2500*1300*1000mm

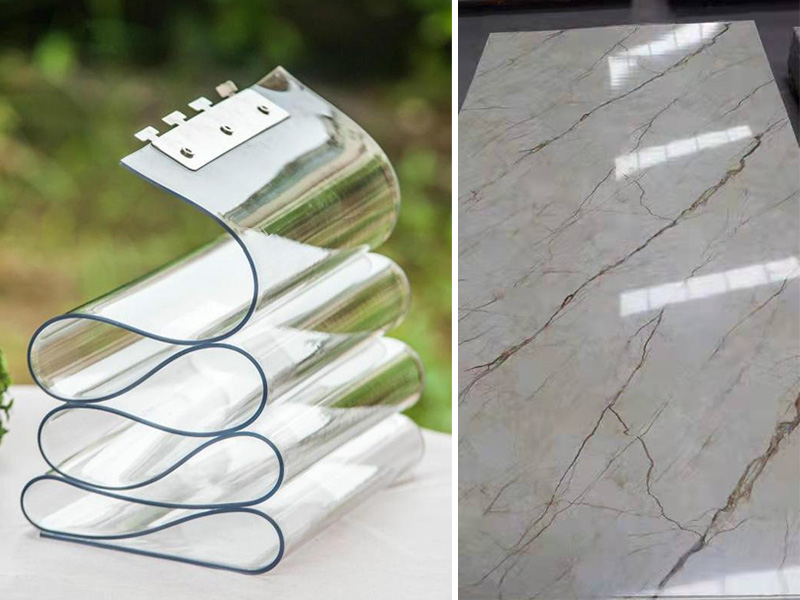

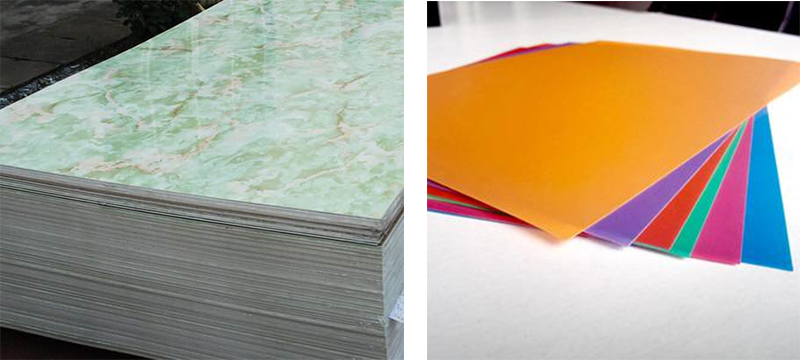

Final Product:

Final Product

Final Product
