PVC Corrugated Roof Hollow Sheet Making Machine
  • PVC Corrugated Roof Hollow Sheet Making Machine
  • PVC Corrugated Roof Hollow Sheet Making Machine
  • PVC Corrugated Roof Hollow Sheet Making Machine
  • PVC Corrugated Roof Hollow Sheet Making Machine
  • PVC Corrugated Roof Hollow Sheet Making Machine
  • PVC Corrugated Roof Hollow Sheet Making Machine
  • PVC Corrugated Roof Hollow Sheet Making Machine
  • PVC Corrugated Roof Hollow Sheet Making Machine

PVC Corrugated Roof Hollow Sheet Making Machine

This production line developed by Hanhai company is featured of unique structure, high degree of automatic, easy operation and stable reliable continuous manufacture performance.

It consists of the following six parts:

NO.SpecificationQuantity
1
Double screw extruder with Automatic loading system1 set
2Mould1 set
3Forming machine bracket1 set
4Haul off machine1 set
5Cutting machine1 set
6Stacker1 set


Technical parameter:

ModelProduction width (mm)Capacity(kg/h)Total Power(kw/h)
SJZ80/1561000
300100

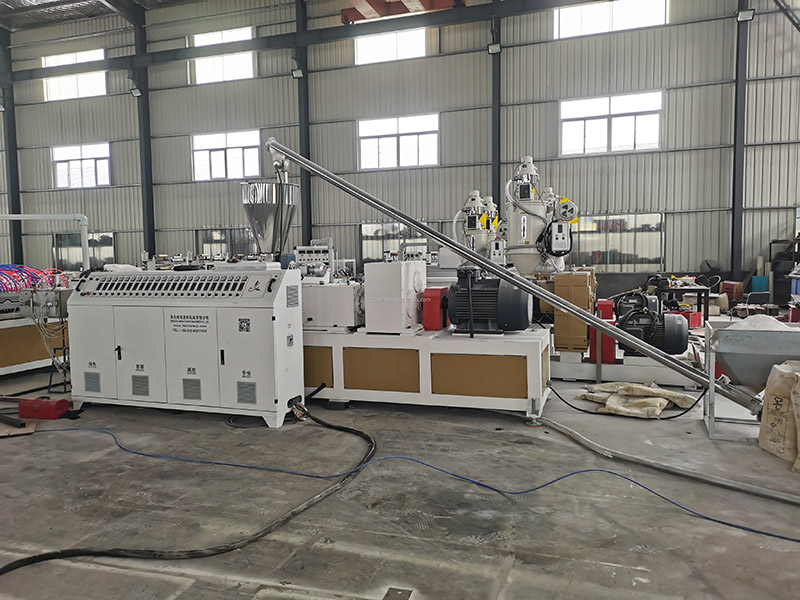

Double screw extruder(with automatic feeding system)

PVC Corrugated hollow sheet making machine : Double screw extruder(with automatic feeding system)

· Motor: Siemens

· Inverter: ABB/Delta

· Contactor: Siemens

· Relay: Omron

· Breaker: Schneider (6) Heating method: Cast aluminum heating

· Material of screw and barrel: 38CrMoAlA.

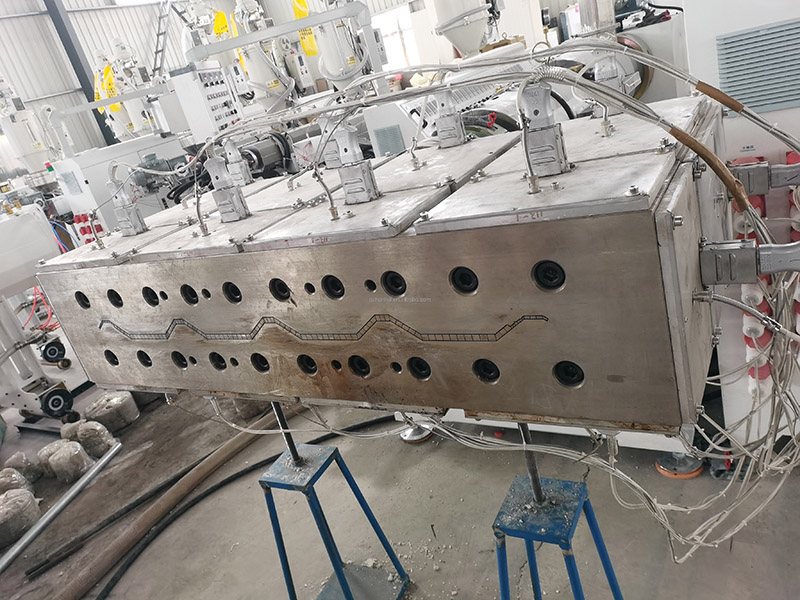

Mold

PVC Corrugated hollow sheet making machine: Mold

· Material: 40GR

· Size: Customized

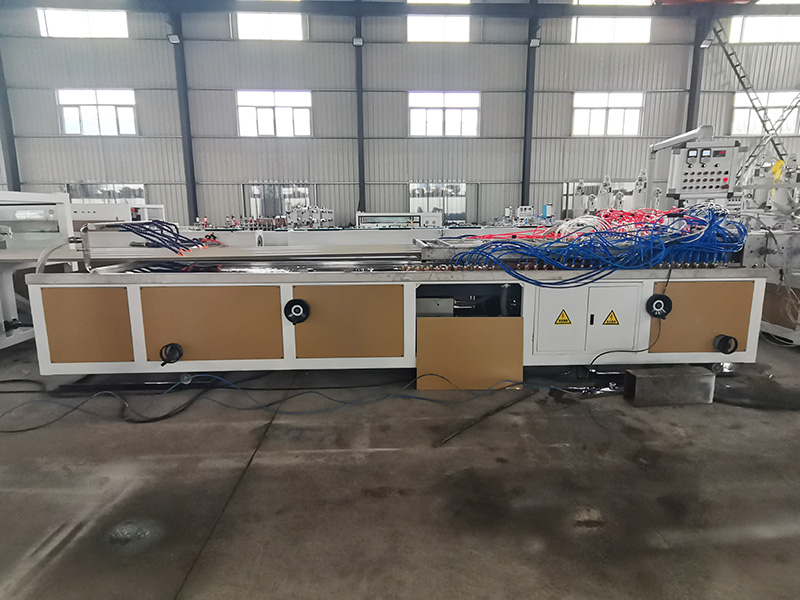

Forming machine

PVC Corrugated hollow sheet making machine : Forming machine

· Stainless steel clamping platform

· Material: Stainless steel

· Diameter: Customized

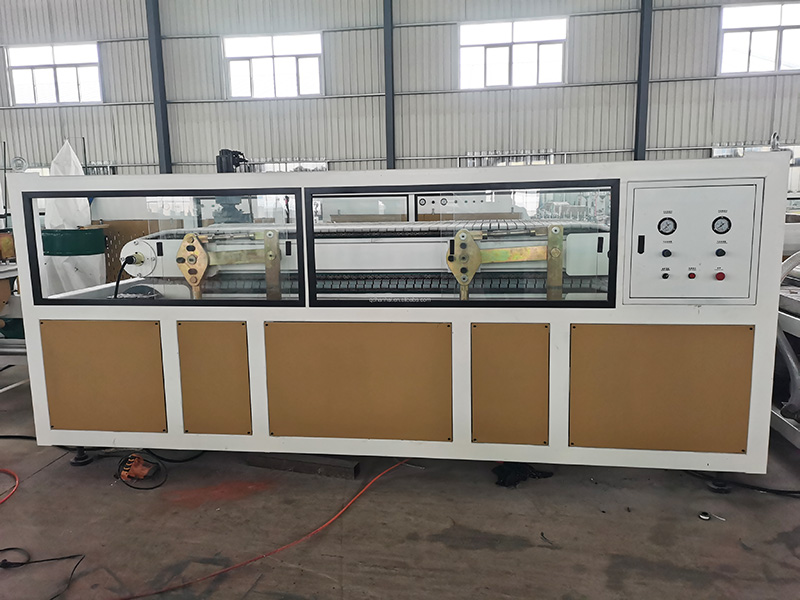

Haul-off machine

PVC Corrugated hollow sheet making machine : Haul-off machine

· Driving motor power: 11 kw

· Drawing speed: 0.2~5 m/min

· Haul-off method: 6 caterpillars

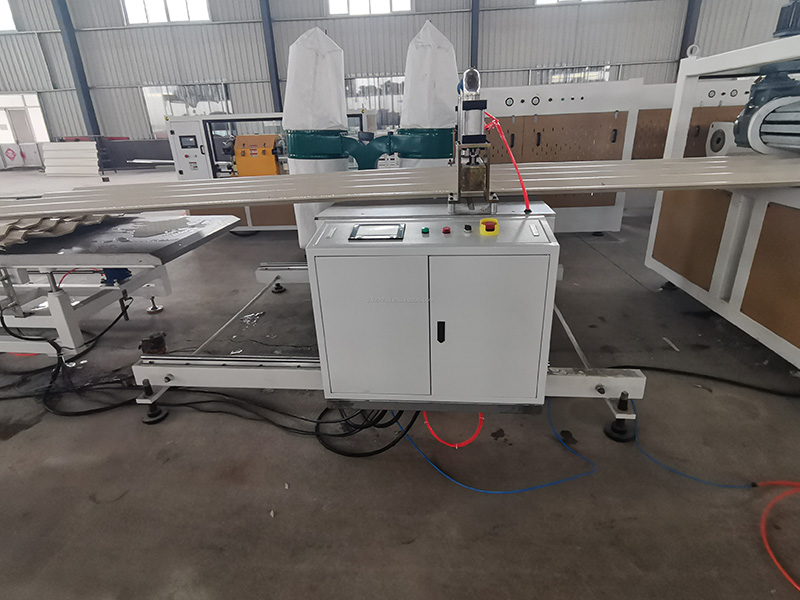

Cutting machine

PVC Corrugated hollow sheet making machine : Cutting machine

· Method: Saw cutting

· Cutting scope: Customized

· Power : 3KW

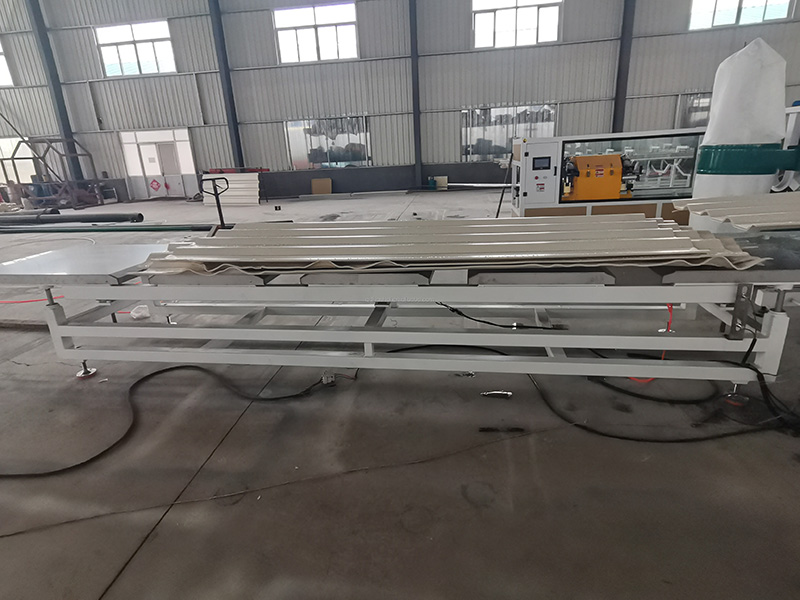

PVC Corrugated hollow sheet making machine Stacker

PVC Corrugated hollow sheet making machine Stacker

· Length: 6m

· Width: 1m

· Material: Stainless steel

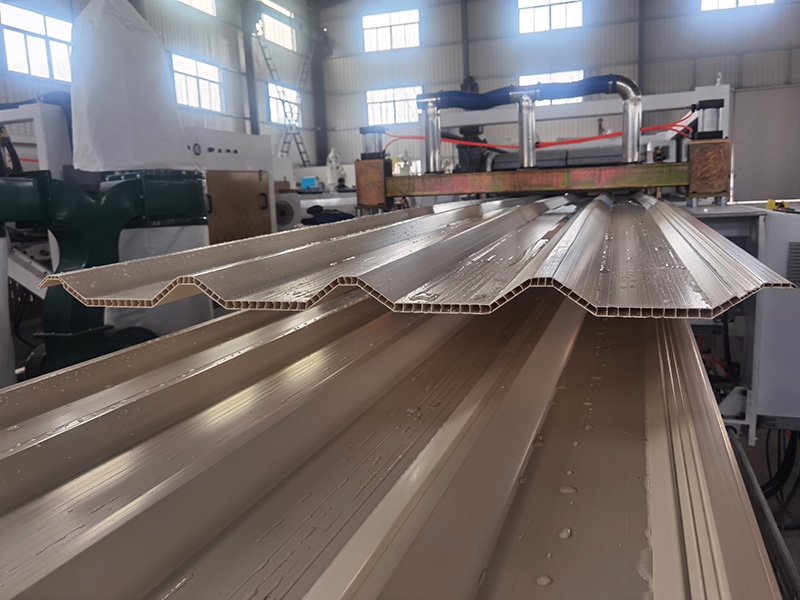

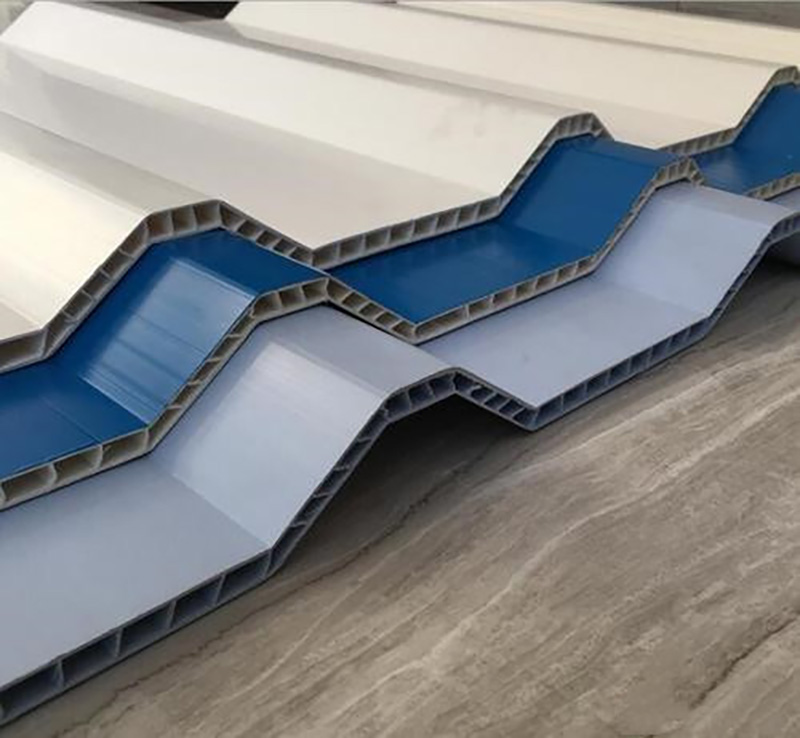

Final Product:

PVC Corrugated Roof Hollow Sheet Making Machine

PVC Corrugated Roof Hollow Sheet Making Machine

PVC Corrugated Roof Hollow Sheet Making Machine

PVC Corrugated Roof Hollow Sheet Making Machine
