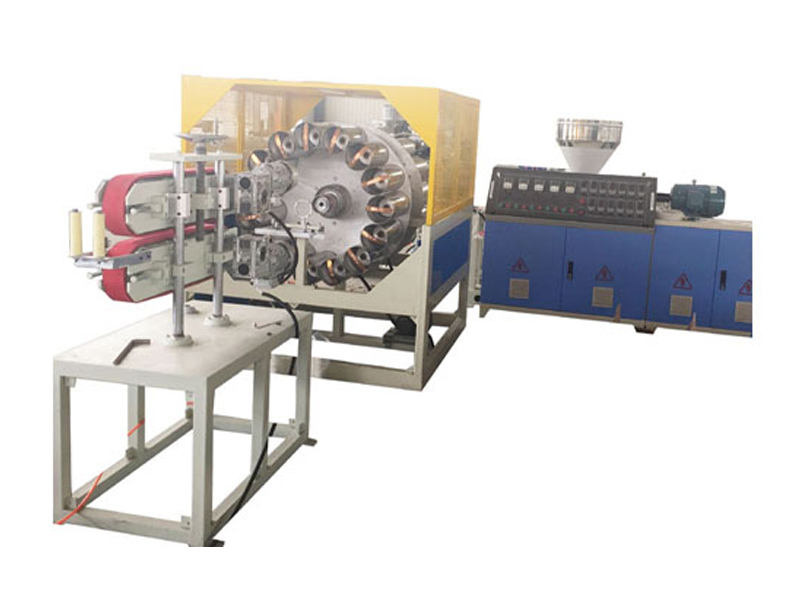

It is suitable for producing all kinds of PVC soft pipes. The whole production line consists of the following six parts:

Different models of production lines can produce PVC pipes with different diameter.

Technical parameter:

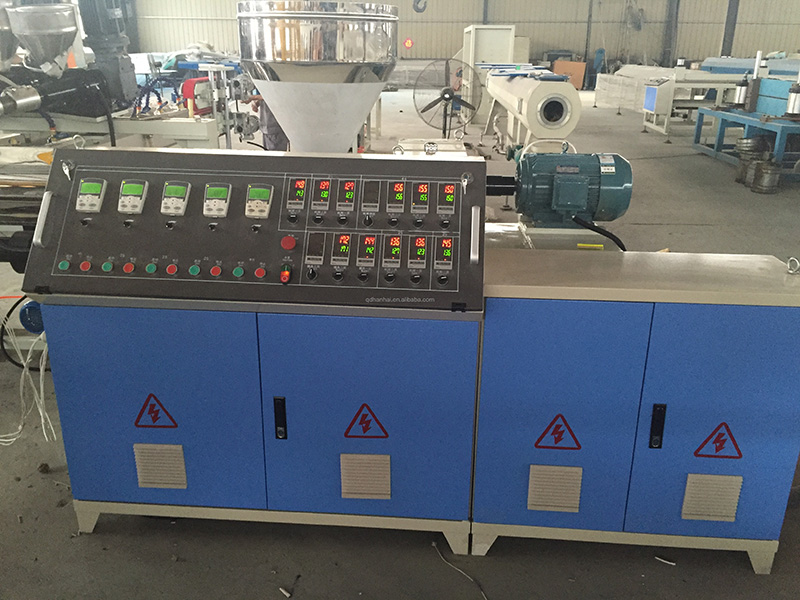

PVC garden soft pipe making machine Single screw extruder with automatic  feeding device:

According to the requirements of different diameters, different wall thicknesses and different output of pipes, we have many models of special twin screw extruders to choose from. It adopts a specially designed screw structure, which can evenly heat,

plasticize PVC granules and extrude pipes .

· Motor brand: Siemens

· Inverter brand: ABB/Delta

· Contactor brand: Siemens

· Relay brand: Omron

· Breaker brand: Schneider

· Heating method: Ceramic or cast

· aluminum heating

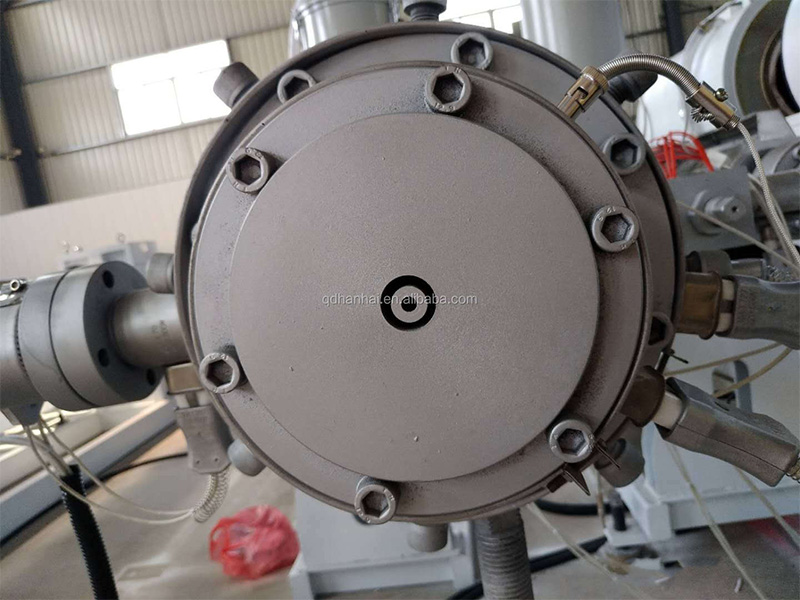

PVC garden soft pipe making machine mold:

The mould is made of high-quality alloy steel, the internal flow channel is chrome-plated and highly polished, which is wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed is hight and the surface of the pipe is good.

· Material: 40GR

· Size: Customizable

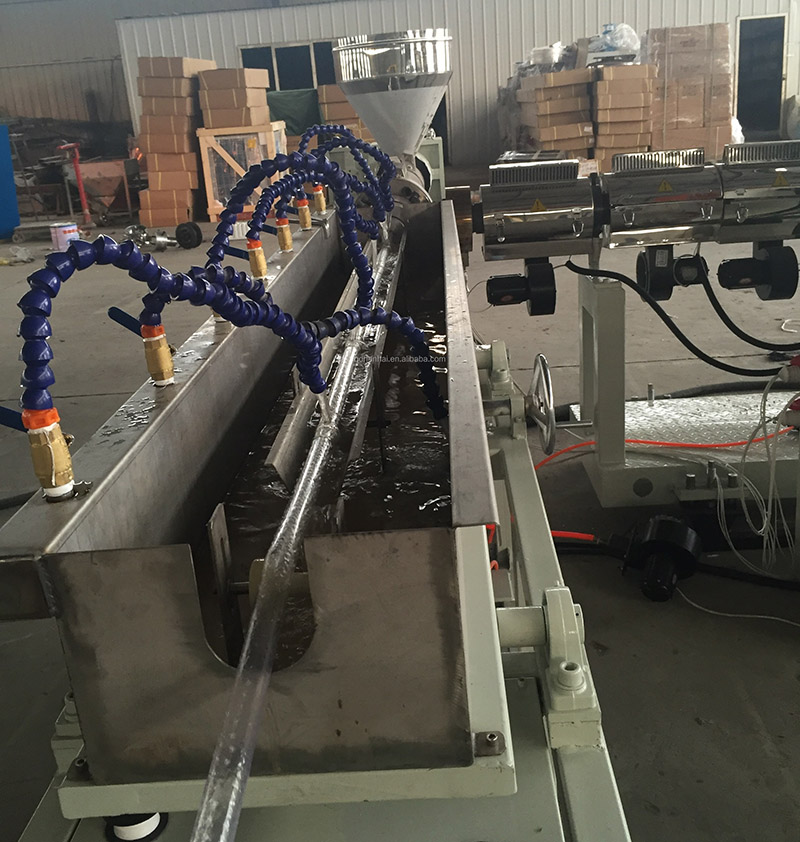

PVC garden soft pipe making machine Stainless steel cooling tank:

It can calibrate and cool the PVC pipe from the mould.

· Length: 2000mm

· Material: stainless steel

· Calibrating method: inside pressure

· Up and down, front and behind maybe moved

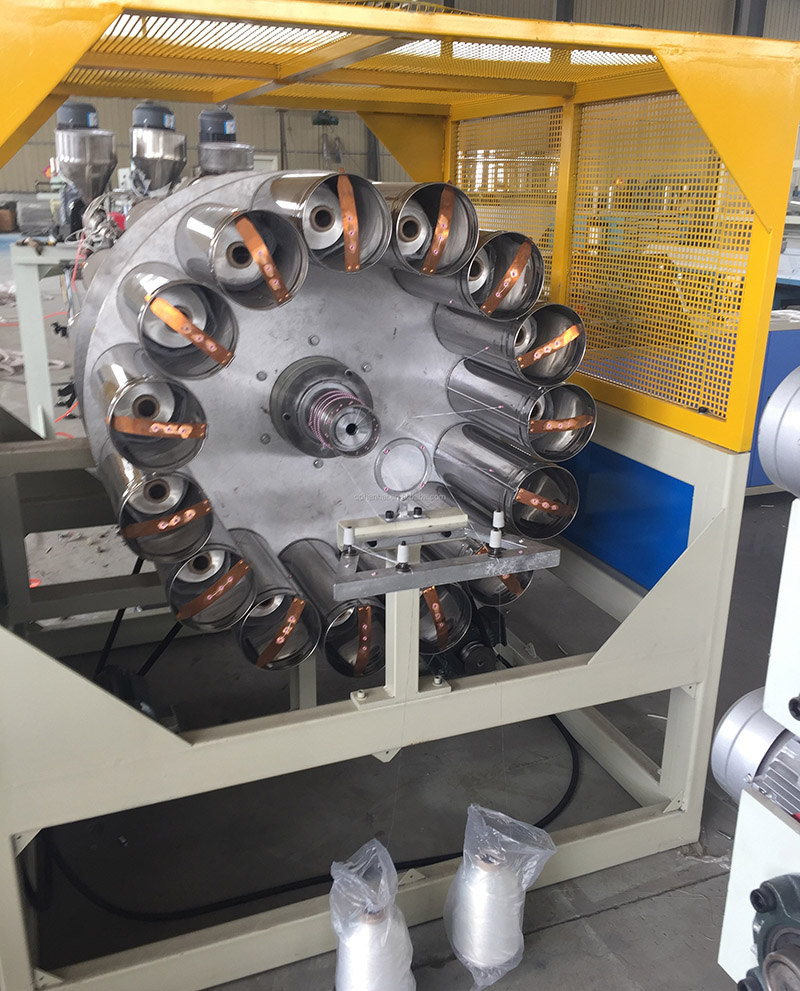

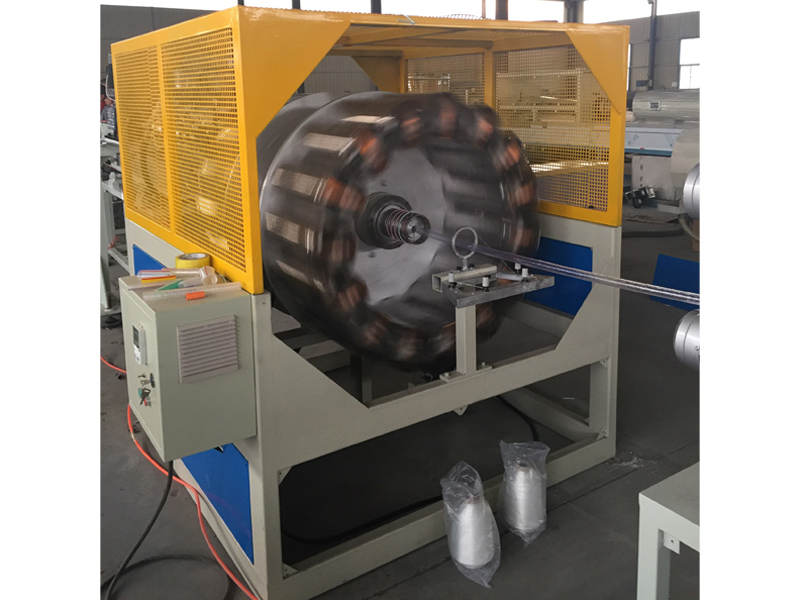

PVC garden soft pipe making machine Knitting Machine:

It is used for knitting or braiding the fiber.

· Power: 3 kw

· 32 positions for fiber

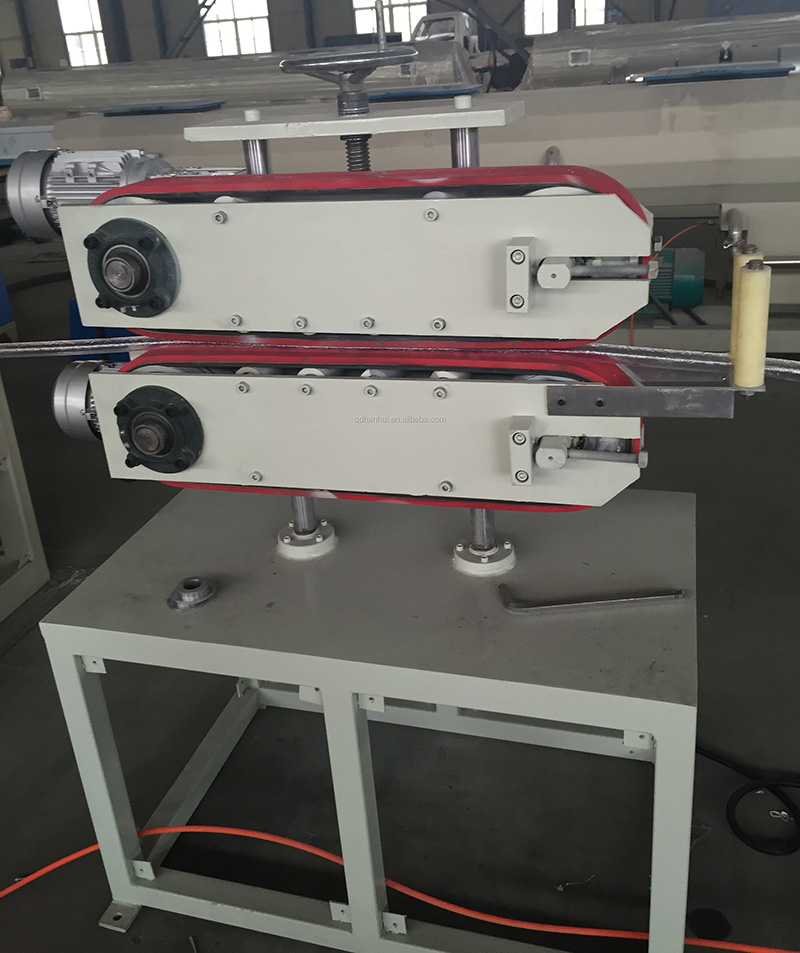

PVC garden soft pipe making machine Haul-off machine:

It is used for haul-off the PVC hose.

· Motor power: 0.75 kw

· Valid length: 600mm

· Haul-off speed: 0-18m/min

· Using good quality flat adhesive backed tape

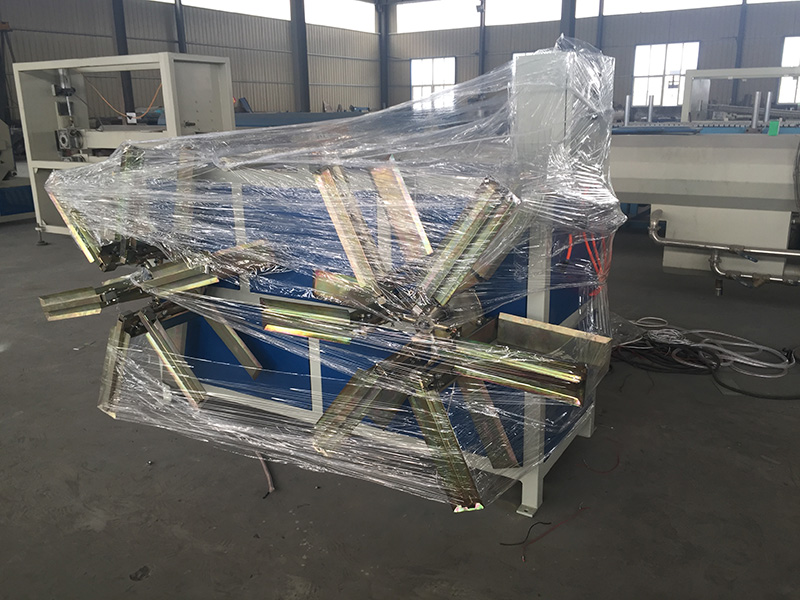

PVC garden soft pipe making machine winding machine:

It is used to wind up PVC hoses.

· Length of rolling pipe: 50-100feet

· Using power torque and auto win

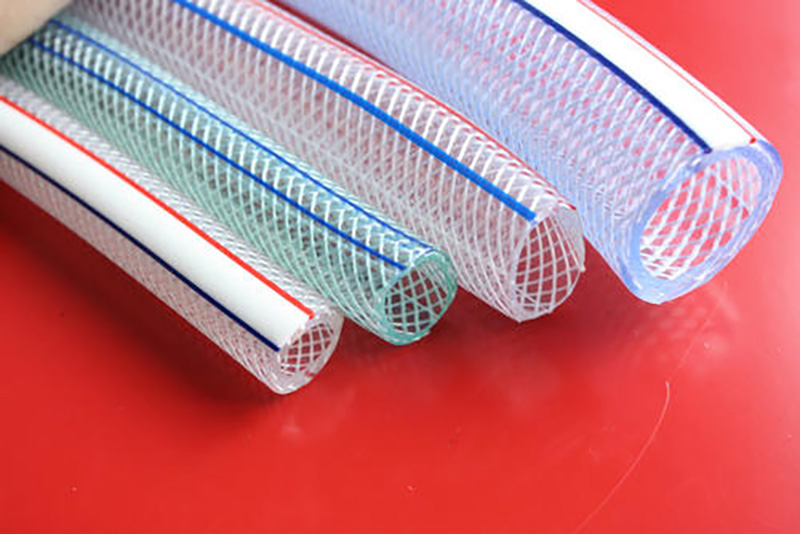

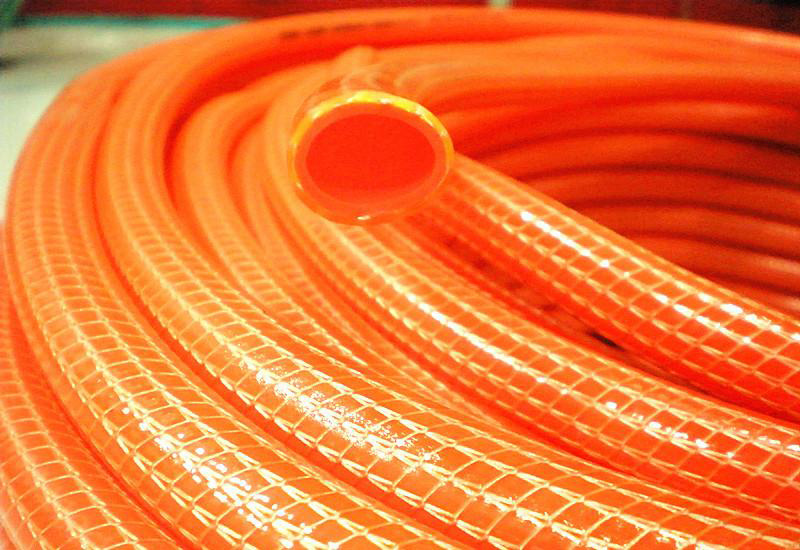

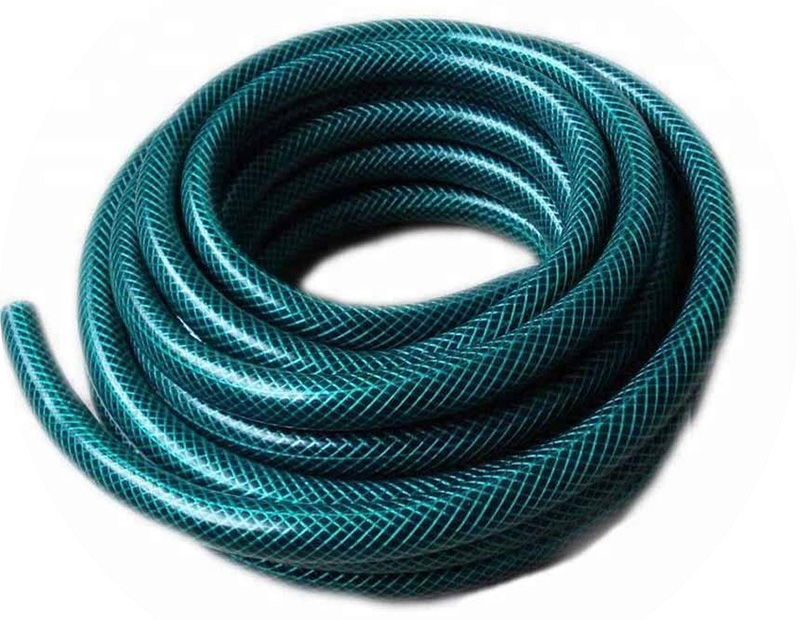

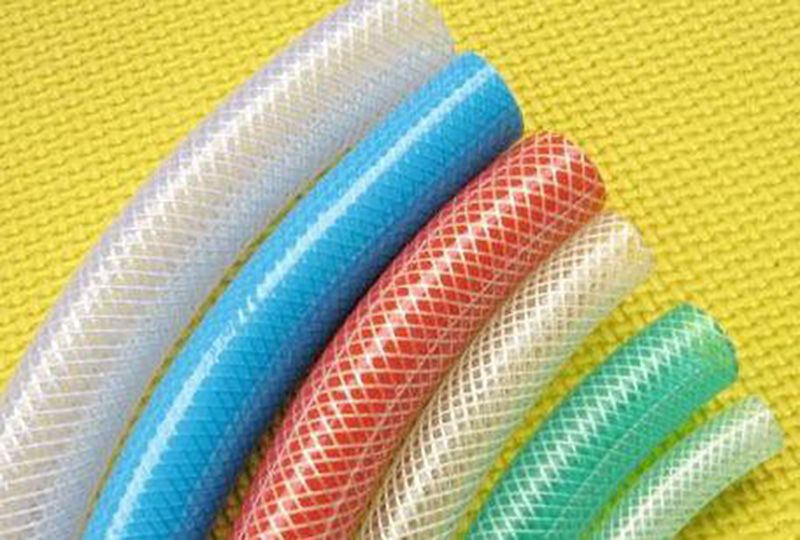

PVC garden soft pipe making machine Final products:
