PVC Window & Door Plastic Profile Machine

According to the size and cross-section of different profiles, we will choose different types of twin-screw extruders and molds, and configure the corresponding vacuum setting table, tractor, cutting machine, turning table and other auxiliary equipment.

This production line consists of the following six parts:

NO.
SpecificationQuantity
1
Twin-screw extruder (with Automatic loading system)1 set
2Mould1 set
3Calibrating and cooling device1 set
4Haul-off machine1 set
5Cutting machine1 set
6Stacker1 set


Technical parameter:

ModelScrew Diameter(mm)Speed (rpm)Main motor power(kw)Capacity  (kgs/h)
SJZ4545/10034.715
80
SJZ5050/10534.718.5100
SJZ5555/11034.722
150
SJZ6565/13234.730/37
250
SJZ6868/14739.145
320
SJZ8080/15625
55360
SJZ9292/1882590
600

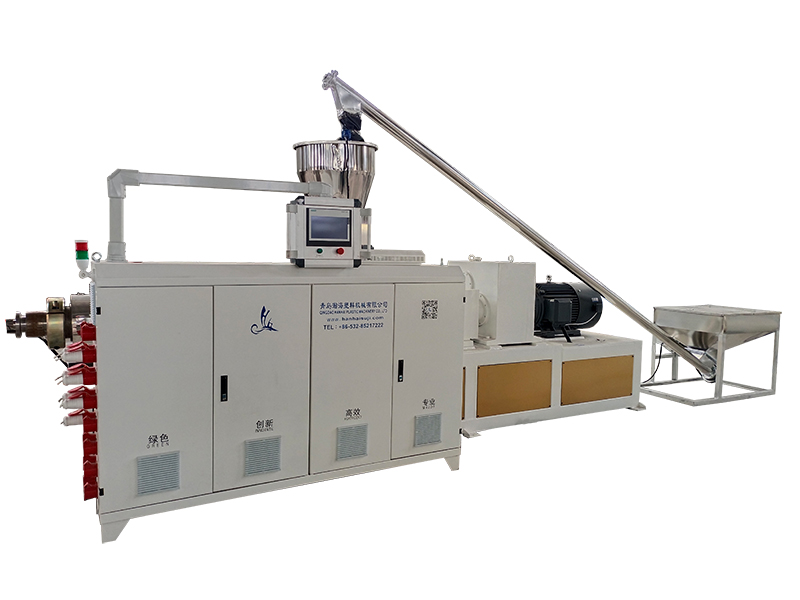

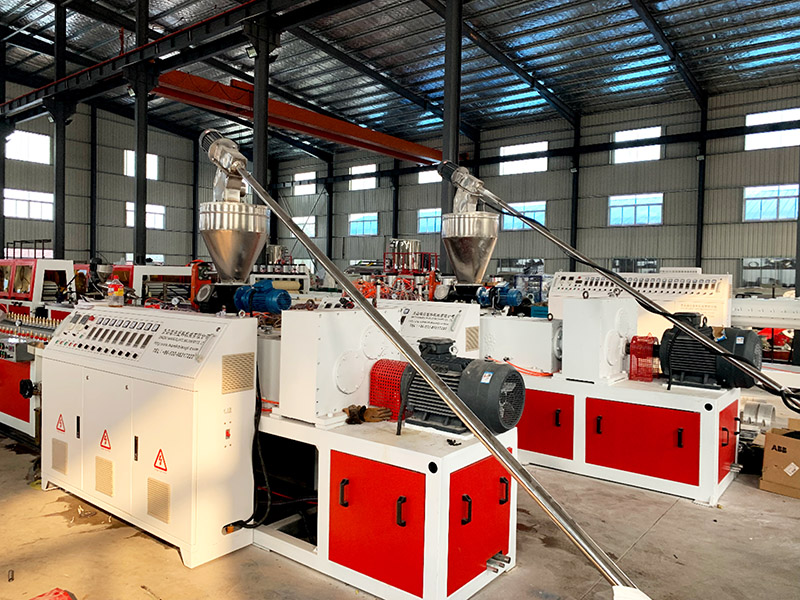

PVC Window Door Plastic Profile Machine Double screw extruder

PVC Window Door Plastic Profile Machine Double screw extruder

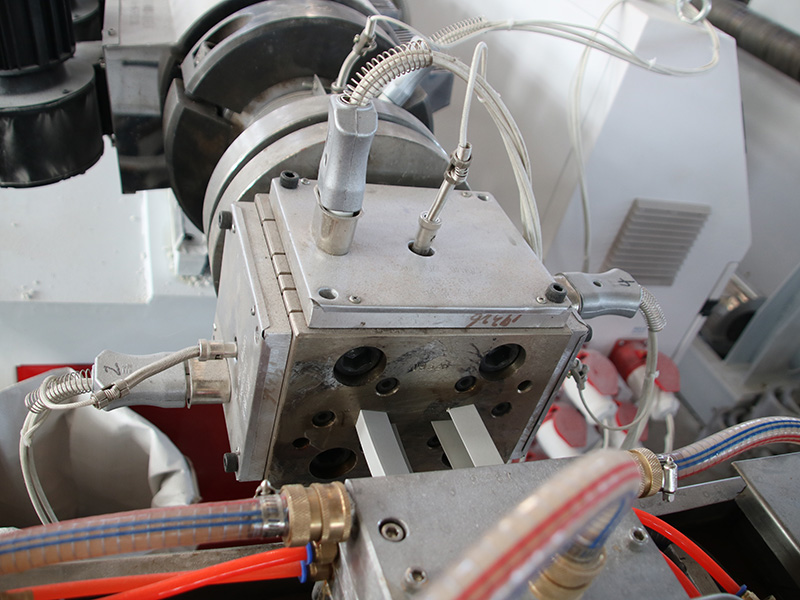

PVC Window Door Plastic Profile Machine Mould

PVC Window Door Plastic Profile Machine Mould

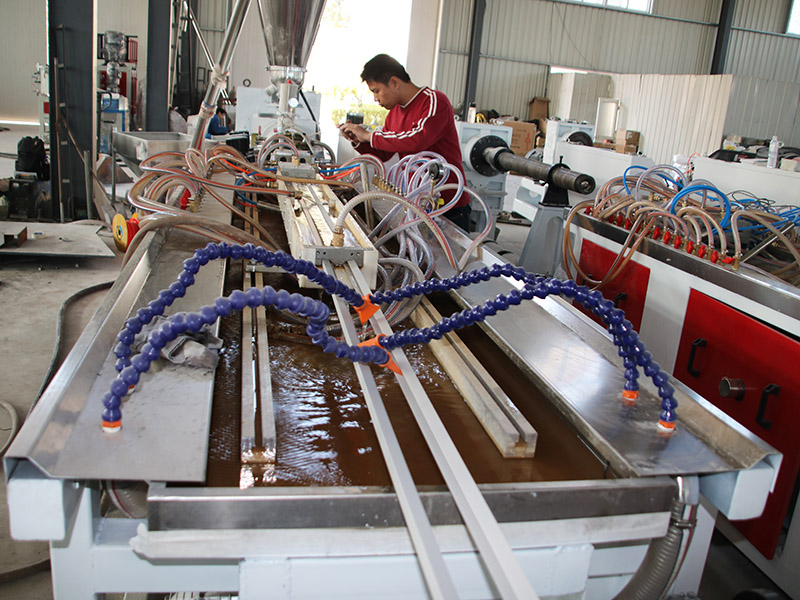

PVC Window Door Plastic Profile Machine Calibrating and cooling device

PVC Window Door Plastic Profile Machine Calibrating and cooling device

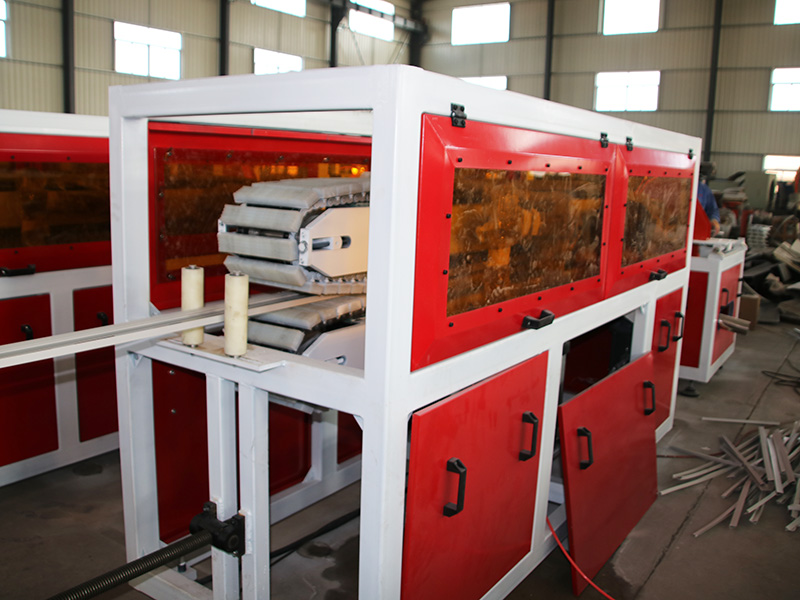

PVC Window Door Plastic Profile Machinery Haul-off machine

PVC Window Door Plastic Profile Machinery Haul-off machine

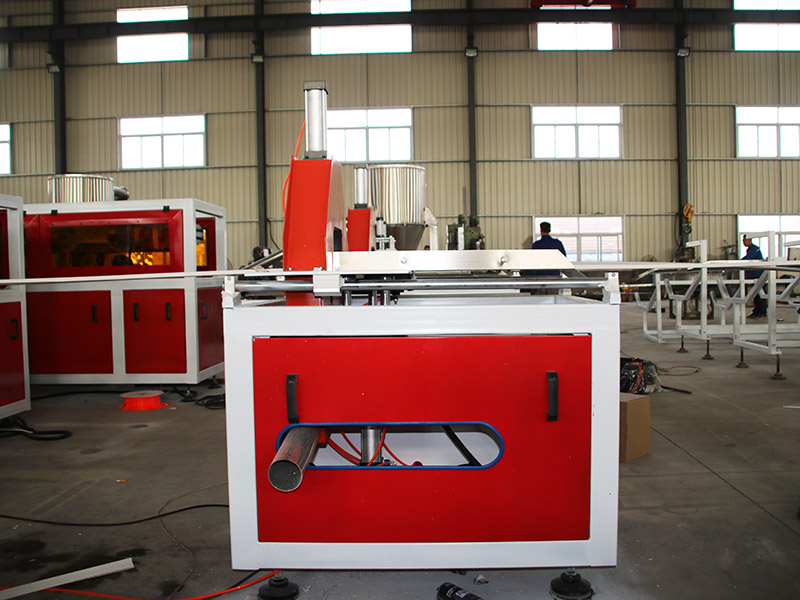

PVC Window Door Plastic Profile Machinery Cutting machine

PVC Window Door Plastic Profile Machinery Cutting machine

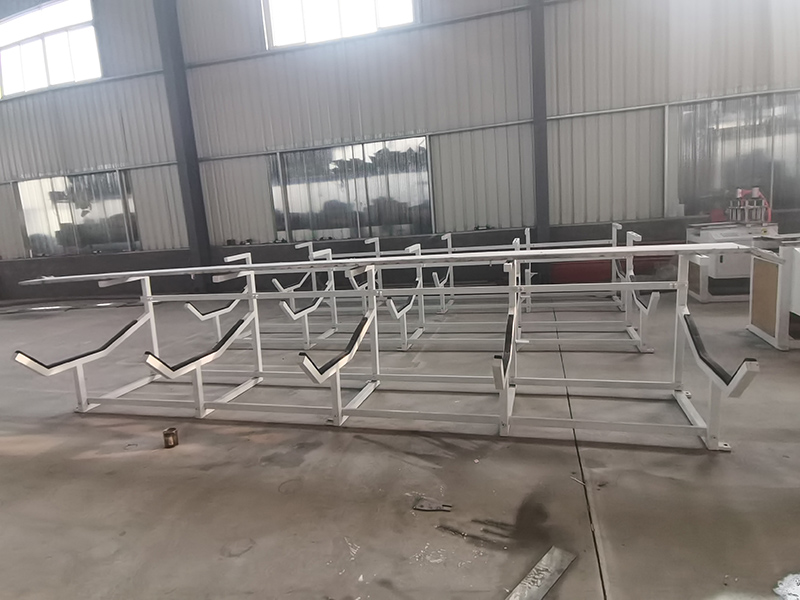

PVC Window Door Plastic Profile Machine Stacker

PVC Window Door Plastic Profile Machine Stacker

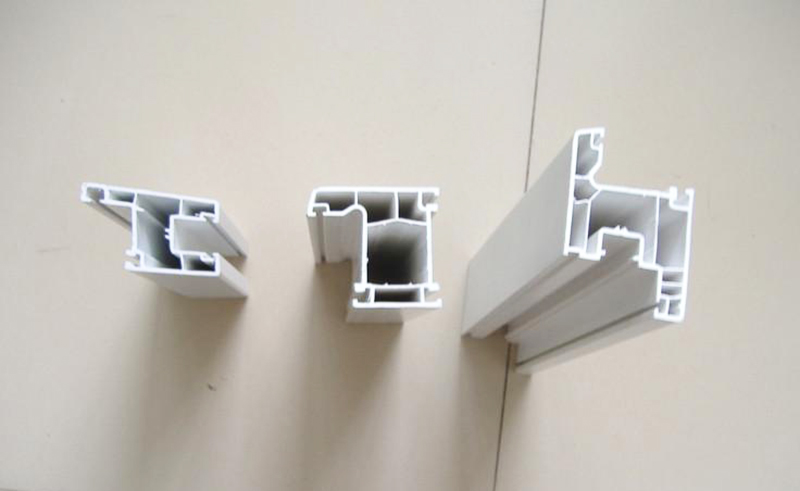

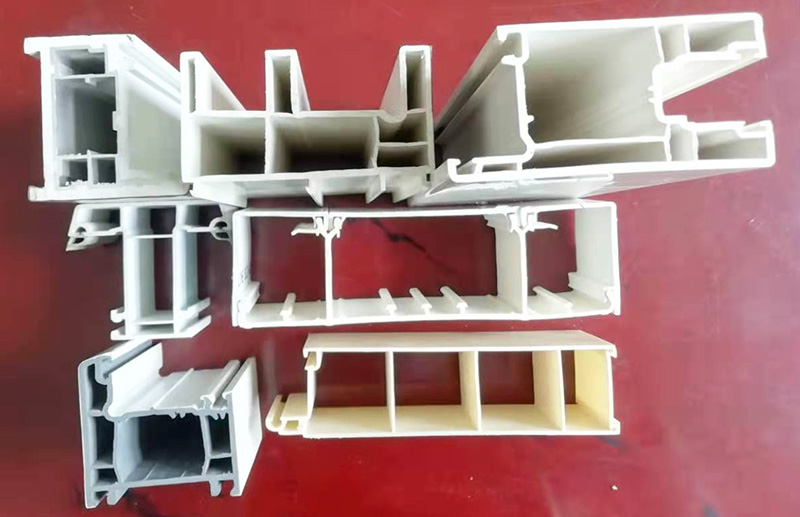

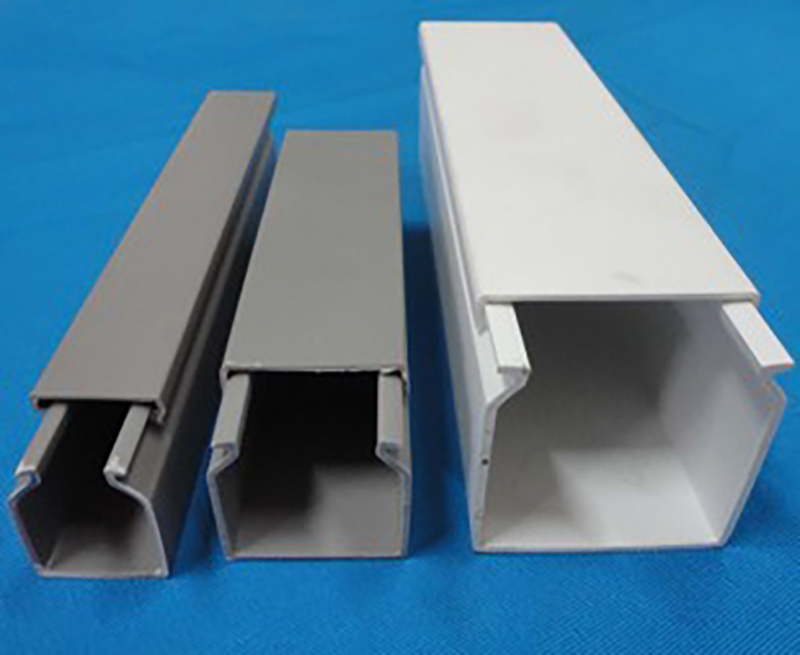

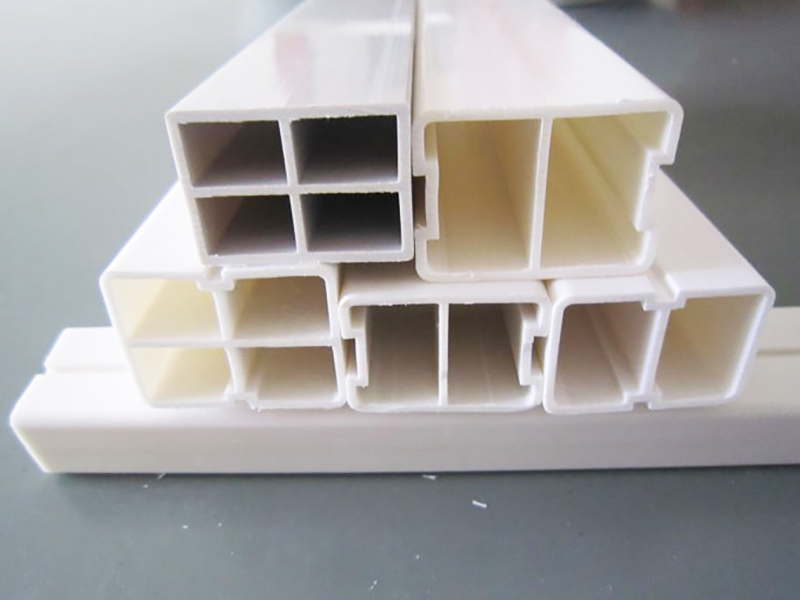

PVC Window Door Plastic Profile Machine Final Product:

PVC Window Door Plastic Profile Machine Final Product

PVC Window Door Plastic Profile Machine Final Product

PVC Window Door Plastic Profile Machine Final Product

PVC Window Door Plastic Profile Machine Final Product
