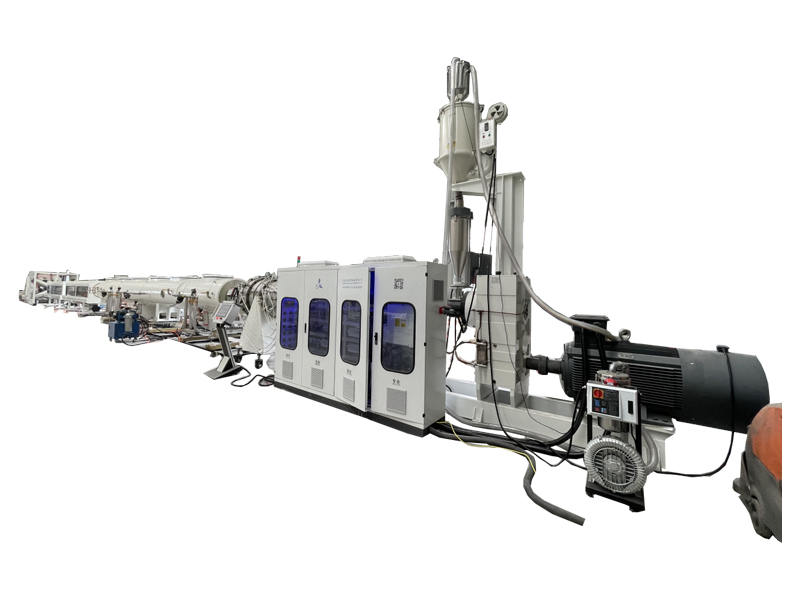

HDPE PE Pipe Extrusion Line Making Machine

The HDPE plastic pipe extrusion line making machine can be used for different diameter HDPE PE Pipe production which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred for ductwork system of gas, water pipe and agricultural irrigation pipe between city and village.
ModelScrew Diameter (mm)L/D ratioMain motor power (kw)
SJ65/33653345/75/90
SJ75/3375
33110/132
SJ90/339033160/185
SJ120/33120
33280/315
SJ150/3315033355/400
SJ50/3850
3875
SJ60/386538110
SJ75/3875
38160
SJ90/389038250/280


Technical parameter:

NO.NameQuantity
1Single screw extruder (with automatic feeding system)1set
2Mould1set
3Vacuum calibrating tank1set
4Water cooling tank1set
5Haul-off machine1set
6Cutting machine1set
7Bracket1set


Details Images:

详情1 拷贝(3).jpg

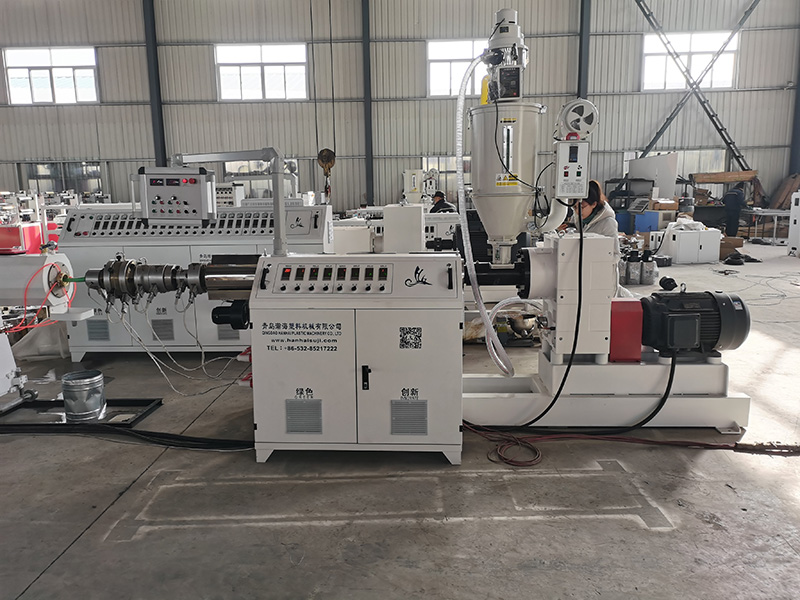

HDPE PE pipe extrusion line making machine: Single screw extruder (with automatic feeding system)

(1) Motor: Siemens

(2) Inverter: ABB/Delta

(3) Contactor: Siemens

(4) Relay: Omron

(5) Breaker: Schneider (6) Heating method: Cast aluminum heating

(7) Material of screw and barrel: 38CrMoAlA.


详情2 拷贝(3).jpg

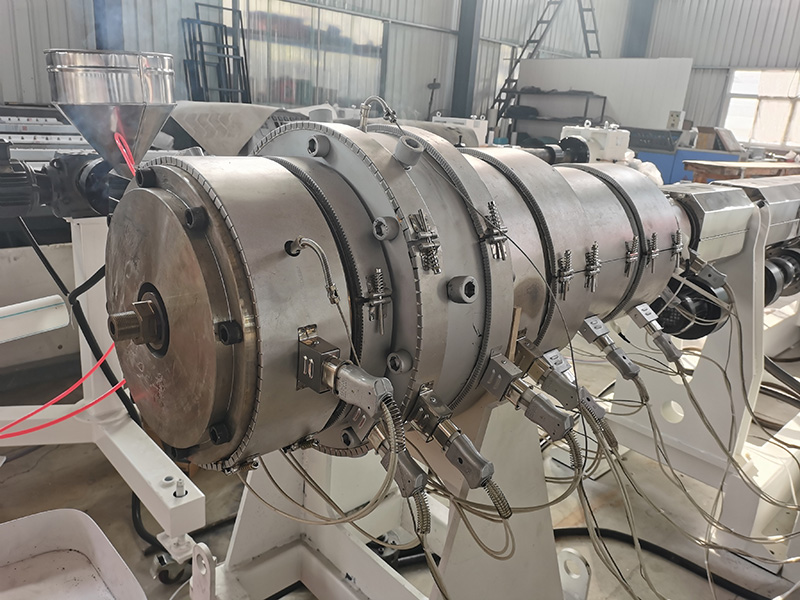

HDPE PE pipe extrusion line making machine: Mold

(1) Material: 40GR

(2) Size: Customized


详情3 拷贝(3).jpg

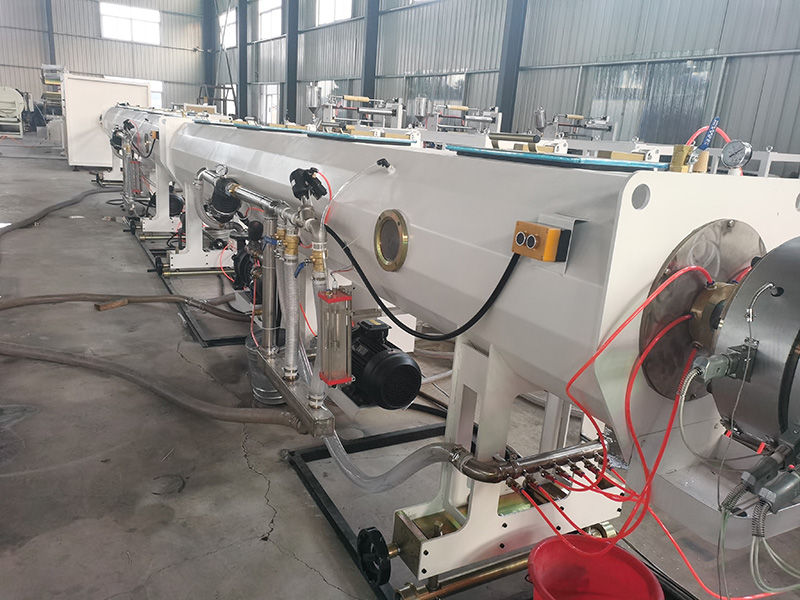

HDPE PE pipe extrusion line making machine: Vacuum calibrating tank

(1) Vacuum pump power : 5.5 kw

(2) Material: Stainless steel

(3) Diameter: Customized

(4) Length: 6 m


详情4 拷贝(2).jpg

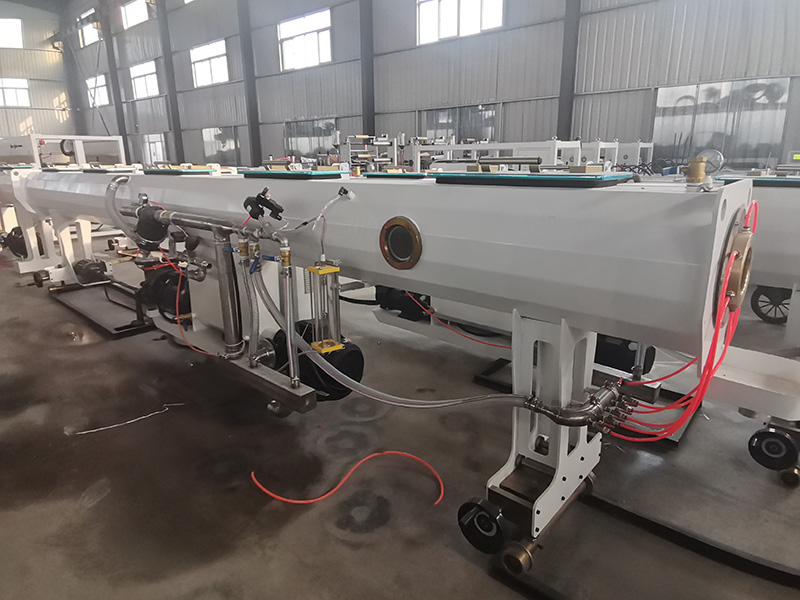

HDPE PE pipe extrusion line making machine: Water cooling tank

(1) Water pump power: 4 kw

(2) Material: Stainless steel

(3) Method: Enforced spraying

(4) Length of tank: 6 m


详情5 拷贝(2).jpg

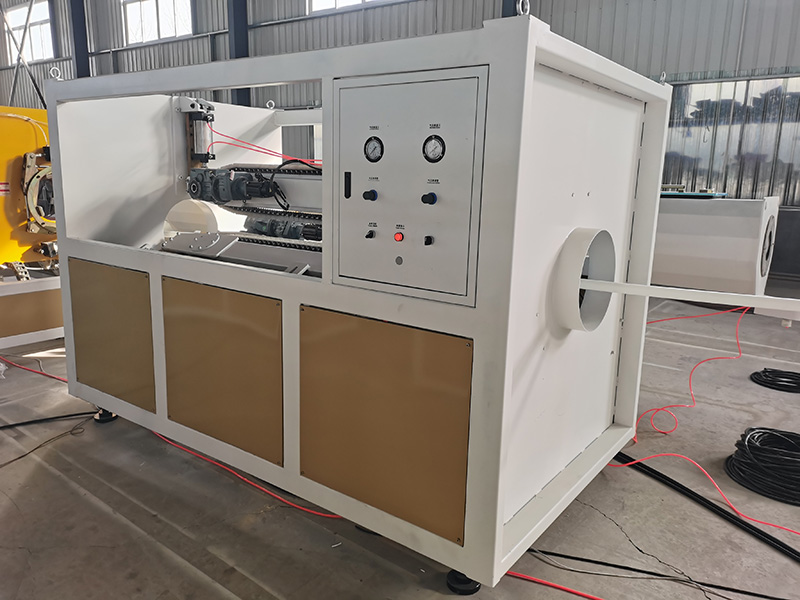

HDPE PE pipe extrusion line making machine: Haul-off machine

(1) Driving motor power: 2.2 kw

(2) Transducer: Siemens transducer

(3) hauling track type：110 plastic block

(4) Pressing method: Pneumatic pressing

(5) Effective clamping length:1800 mm


详情6 拷贝(3).jpg

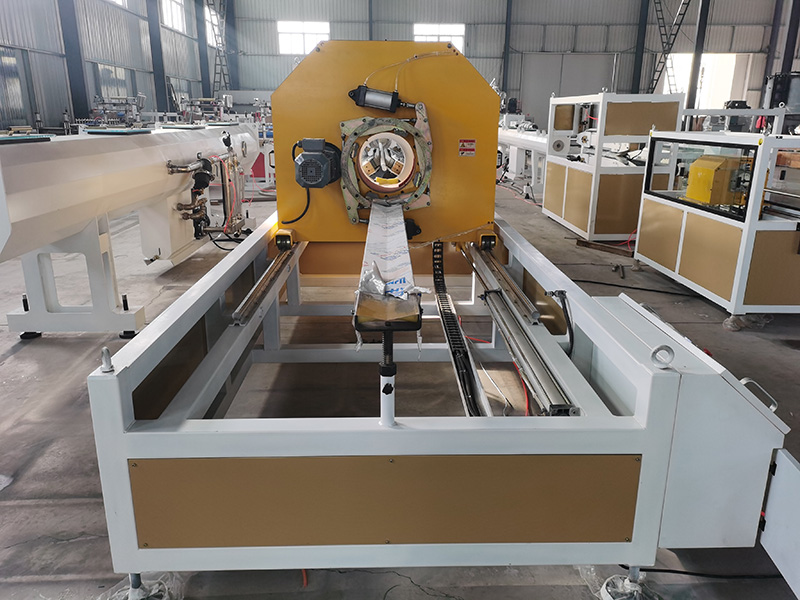

HDPE PE pipe extrusion line making machine: Cutting machine

(1) Motor power: 3 kw

(2) Method: Saw cutting

(3) Cutting scope: Customized

(4) PLC control system, using meter counter or sensor switch for the setting of desired length.


详情7 拷贝(1).jpg

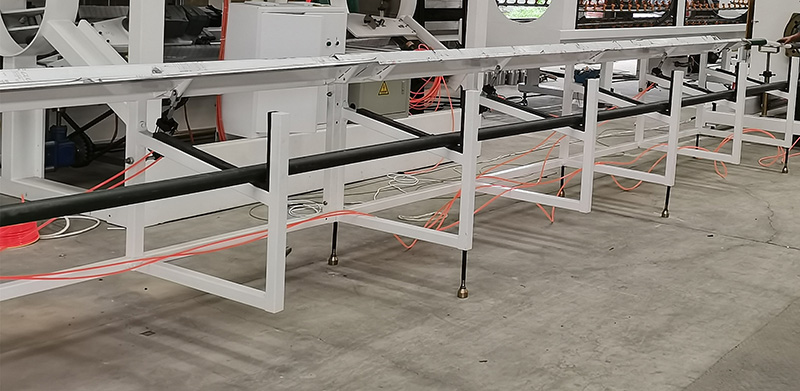

HDPE PE pipe extrusion Line making machine: Bracket

(1) Length: 6 m

(2) Material: Stainless steel

(3) Unloading method: Pneumatic unloading

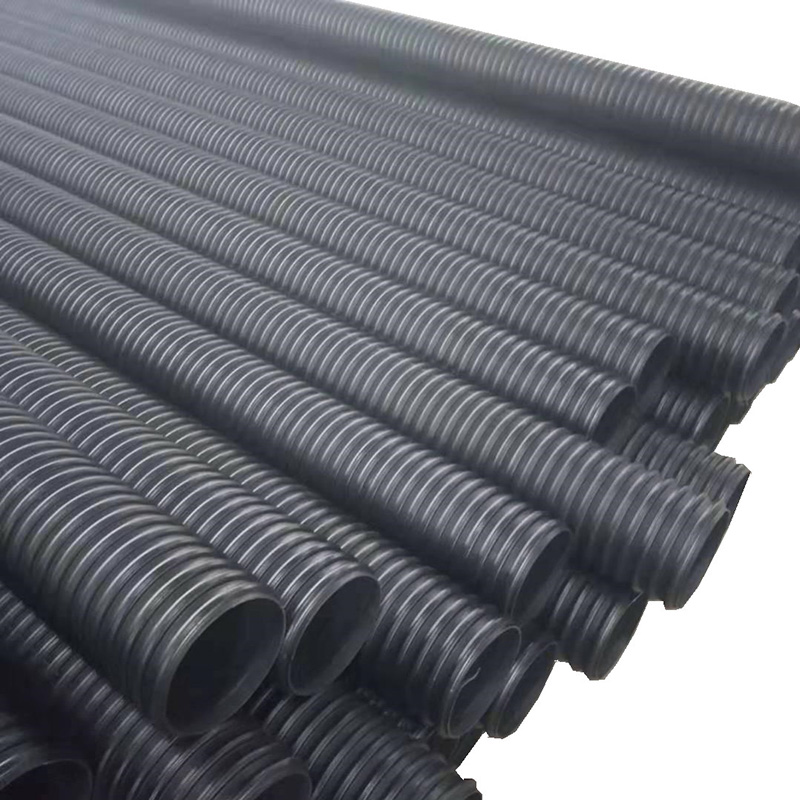

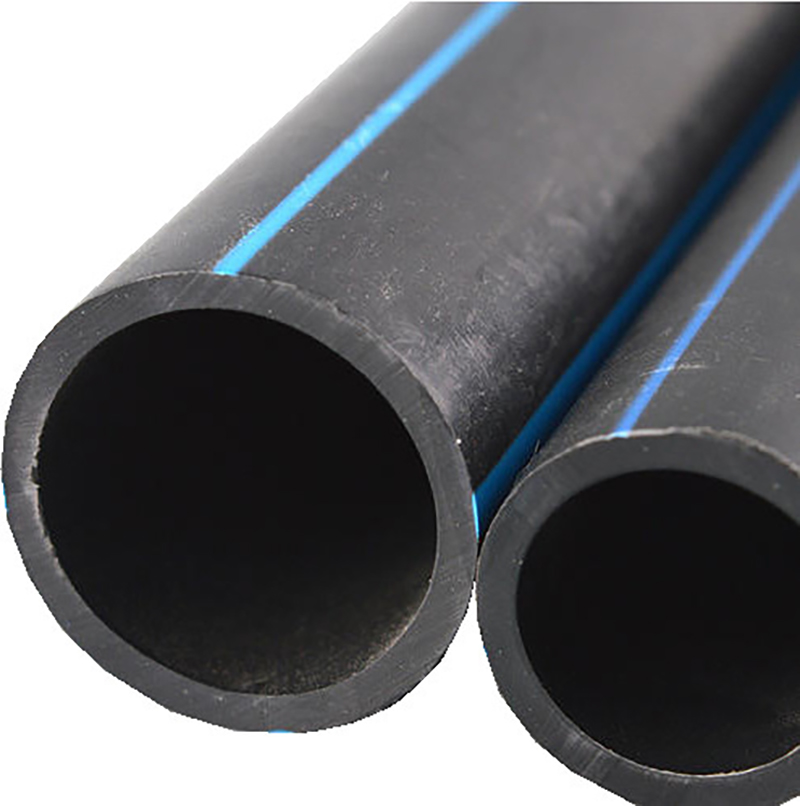

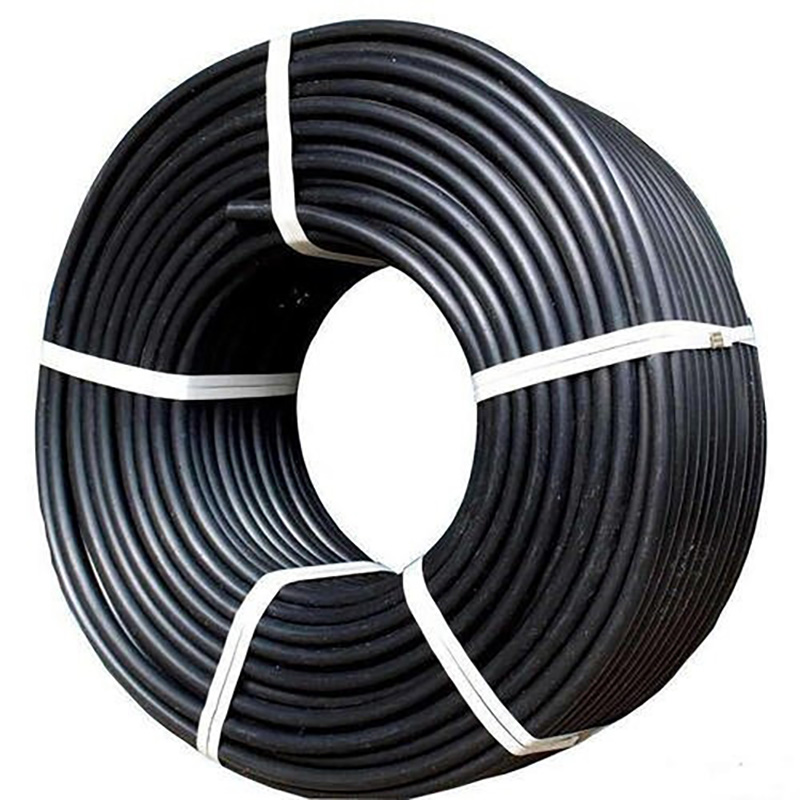

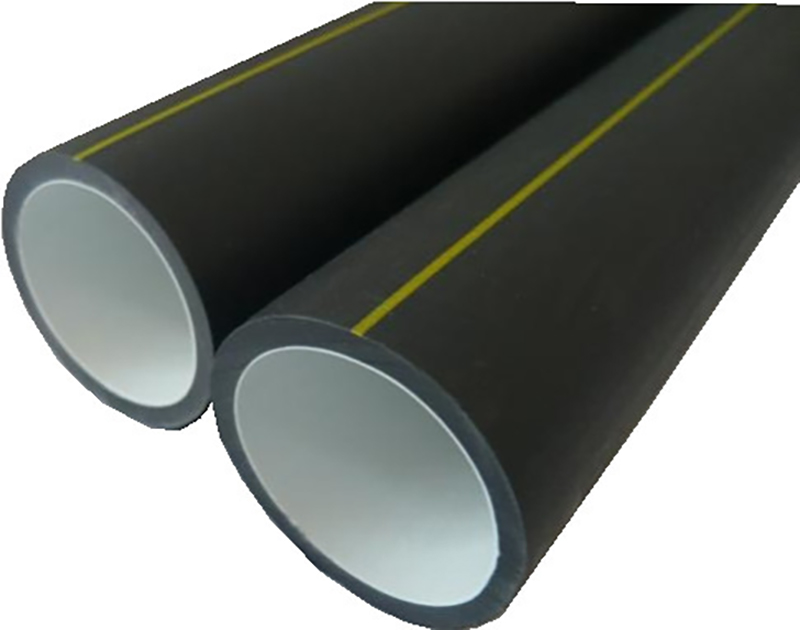

HDPE PE Pipe Extrusion Line Making Machine: Final product:

HDPE PE Pipe Extrusion Line Making Machine

HDPE PE Pipe Extrusion Line Making Machine

HDPE PE Pipe Extrusion Line Making Machine

HDPE PE Pipe Extrusion Line Making Machine
