PE Corrugated Pipe Making Machine
| Model | Pipe Diameter (mm) | Production Speed (m/min) | Production Capacity (kg/h) | Total Power (kw) |
| SJ45/33 | 10~32 | 6~8 | 40 | 20 |
| SJ45/33 | 25~50 | 6~8 | 70 | 30 |
| SJ55/33 | 25~63 | 5~6 | 80 | 45 |
| SJ65/33 | 25~110 | 4~5 | 120 | 60 |
Technical parameter:
| NO. | Name | Quantity |
| 1 | Single screw extruder with automatic loading device | 1 set |
| 2 | Mould | 1 set |
| 3 | Corrugated forming machine | 1 set |
| 4 | Chipless cutting machine | 1 set |
| 5 | Two stations winding machine | 1 set |
| 6 | Perforator | 1 set |
.jpg "Single screw extruder (with automatic feeding system)")

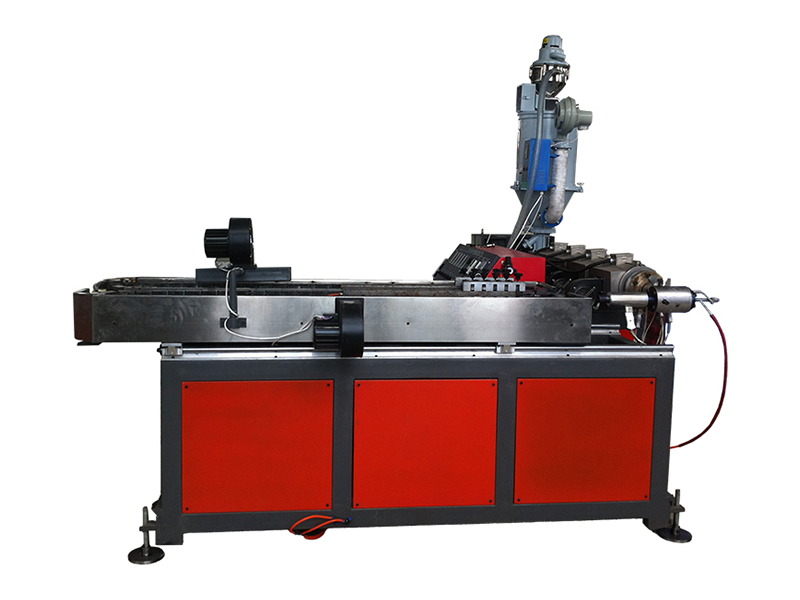

PE corrugated pipe making machine: Single screw extruder (with automatic feeding system)
(1) Motor: Siemens
(2) Inverter: ABB/Delta
(3) Contactor: Siemens
(4) Relay: Omron
(5) Breaker: Schneider (6) Heating method: Cast aluminum heating
(7) Material of screw and barrel: 38CrMoAlA.
.jpg "Mold")

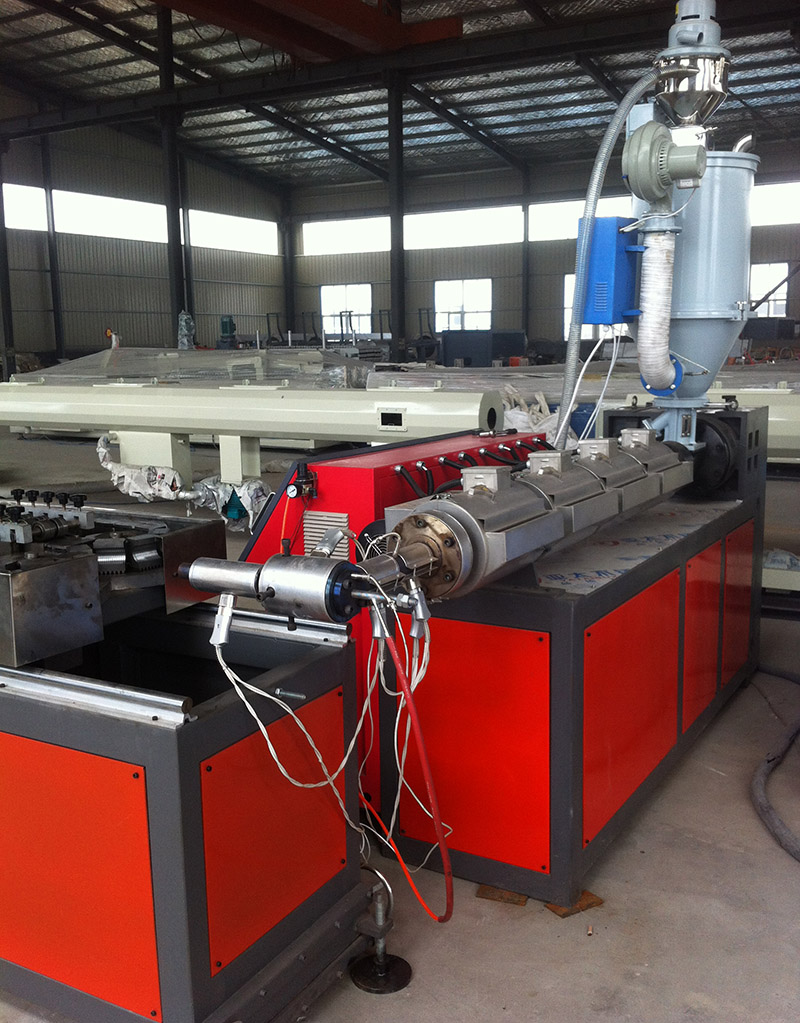

PE corrugated pipe making machine：Mold
The mould is made of high-quality alloy steel, the internal flow channel is chrome-plated and highly polished, which is wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed is hight and the surface of the pipe is good.
(1) Material: 40GR
(2) Size: Customized
.jpg "Forming machine")

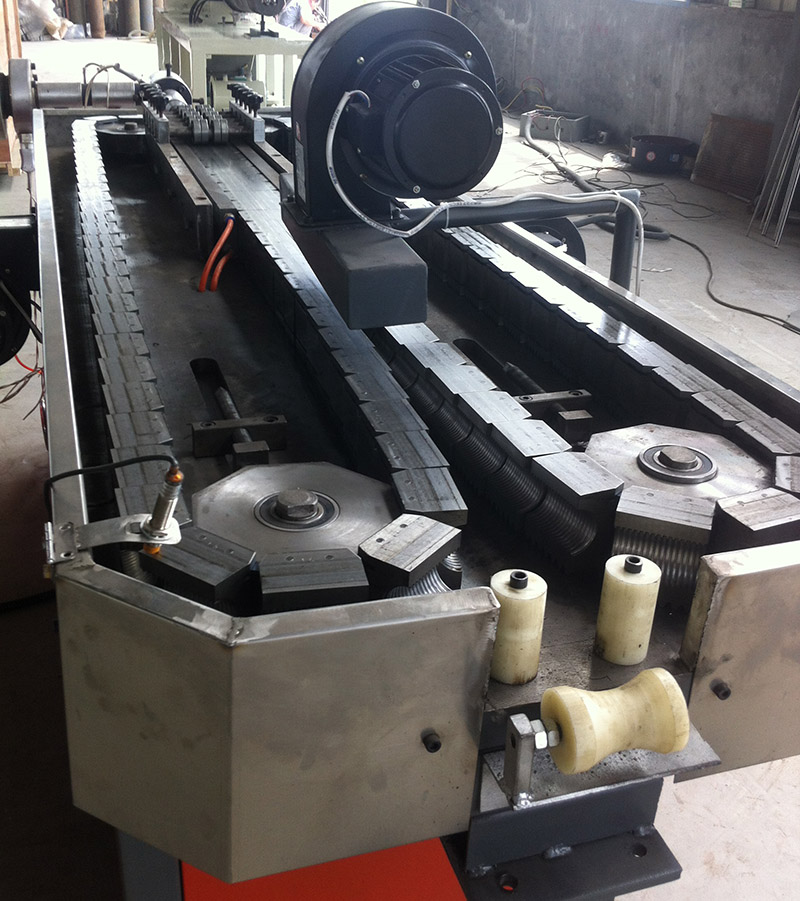

PE corrugated pipe making machine：Forming machine
The corrugated formig device can calibrate and cool the pipe from the mould.
(1) Structure Horizontal.
(2) Guide track material is 40Cr.
(3) Block seat material is 40Cr, nitrided.
(4) AC motor: 2.2KW x 1 set.
(5) Blocks is cooled by air cooling fan.
.jpg "Cutting machine")

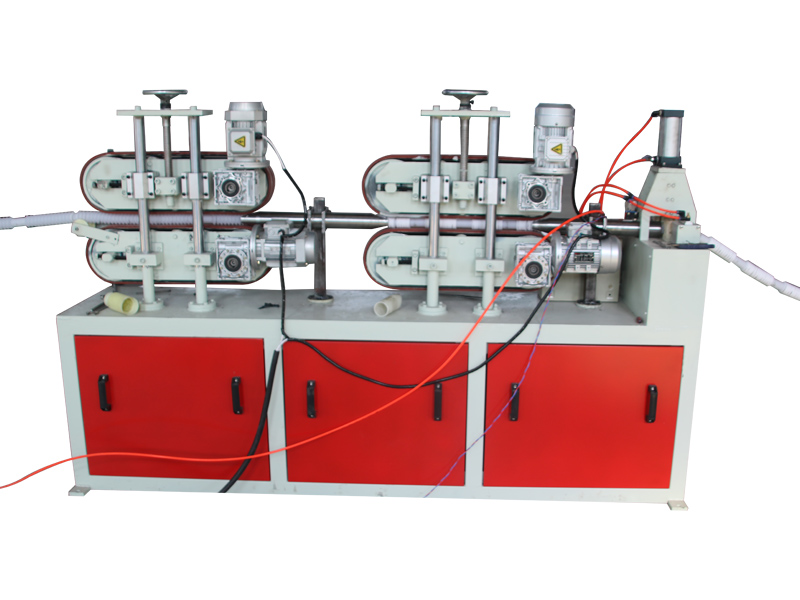

PE corrugated pipe making machine: Cutting machine
(1) Motor power: 3 kw
(2) Method: Saw cutting
(3) Cutting scope: Customized
.jpg "Two stations winding machine")

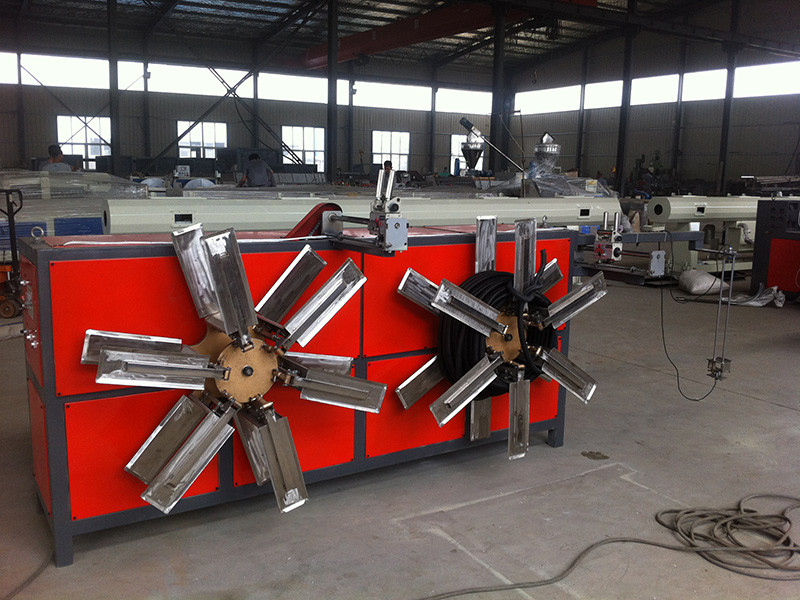

PE corrugated pipe making machine: Two stations winding machine
It uses the delicate and exact meter counting and code setting unit made in Korea.
(1) Two stations automatic winding unit without stopping.
(2) Torque Motor:4-6N/M or customizable.
Corrugated pipe machine final product:
