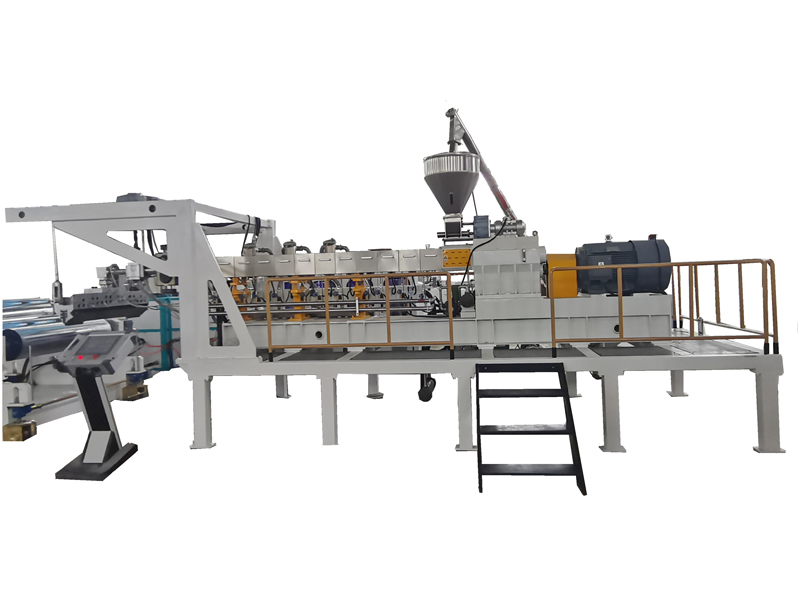

PET Plastic Sheet Making Machine
The whole production line consists of the following six parts:
| NO. | Name | Quantity |
| 1 | Twin screw extruder | 1 set |
| 2 | Die head | 1 set |
| 3 | Three roller calendar | 1 set |
| 4 | Heat exchanger units | 1 set |
| 5 | Edge cutting unit and cooling bracket | 1 set |
| 6 | Haul-off machine | 1 set |
| 7 | Winding machine | 1 set |
Technical parameter:
| Type | Model | Thickness(mm) | Power(kw) | Capacity(kg/h) |
| Multi-layer | 120/65-1000 | 0.2—1.5 | 110/45 | 500 |
| Single layer | 120-1000 | 0.2—1.5 | 110 | 450 |
| Highly efficient | 150-1500 | 0.2—1.5 | 160 | 800 |
.jpg "Twin screw extruder")

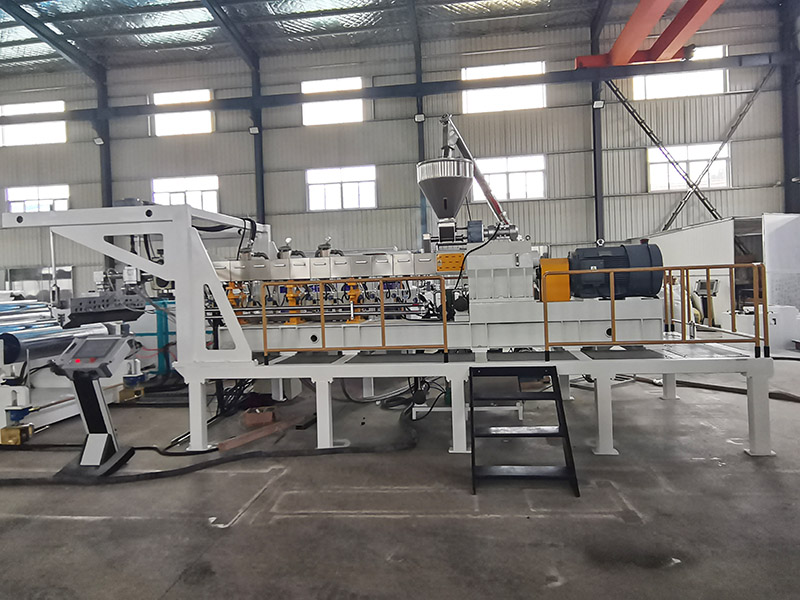

Twin screw extruder
· Motor: Siemens
· Inverter: ABB/Delta
· Contactor: Siemens
· Relay: Omron
· Breaker: Schneider
· Heating method: Ceramic or cast alumin
· Mater screw and barrel: 38CrMoAlA
.jpg "Die head")

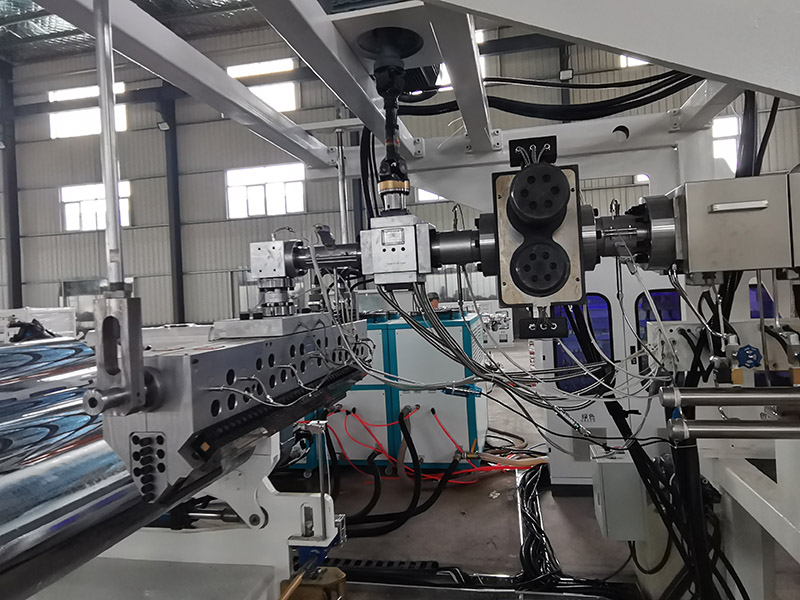

Die head
· Width of mould : 1250mm or customized
· Finished product thickness: 0.2-2 mm
· Material: Alloyed mold steel
.jpg "Three roller calendar")

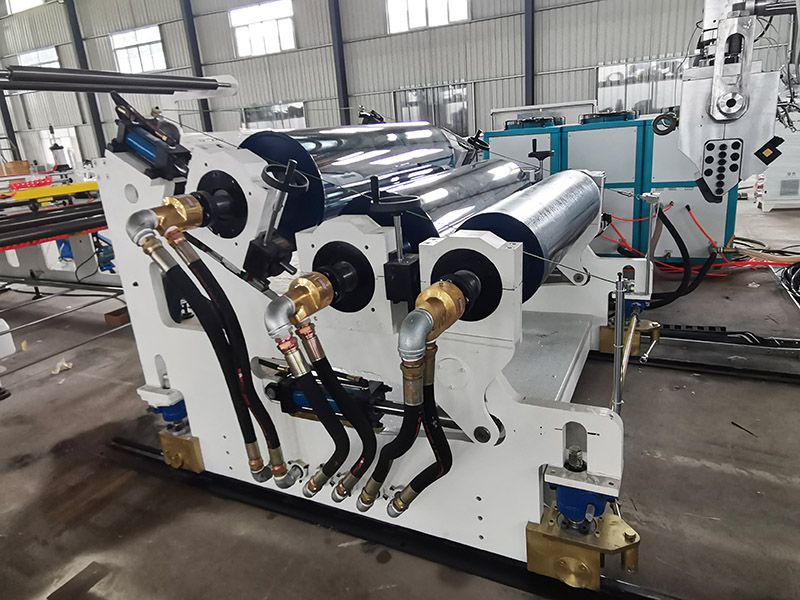

Three roller calendar
· Roller length: 1300mm
· Max. Roller diameter: Ø400mm
· Line speed: 2.2 m/min
.jpg "Edge cutting unit and cooling bracket and haul-off machine")

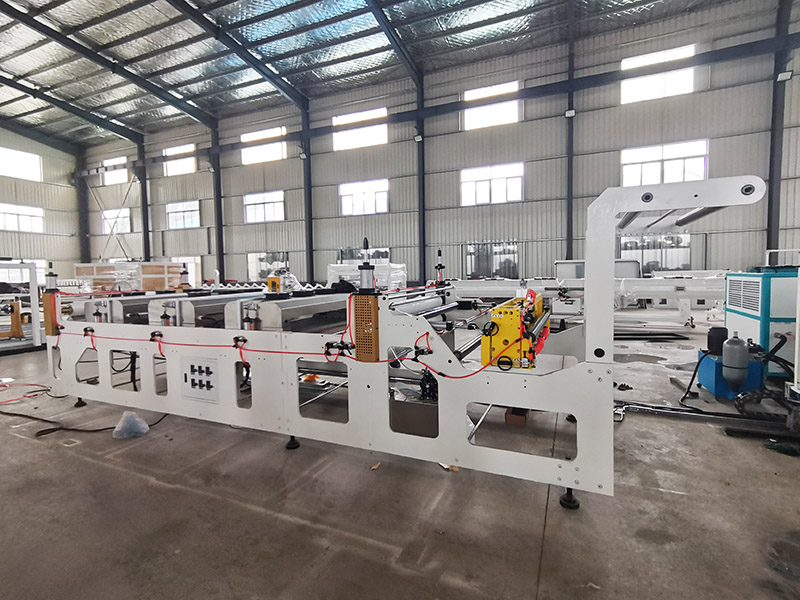

Edge cutting unit and cooling bracket and haul-off machine
· Cooling bracket length: 6m
· Diameter of sloe-cooling roller: Ø70mm
· Length of sloe-cooling roller: 1300mm
· Diameter of haul-off roller: Ø160mm
· Length of haul-off roller: 600mm
· Haul-off line speed: 1.5-15 m/min
.jpg "PET sheet winding machine machine")

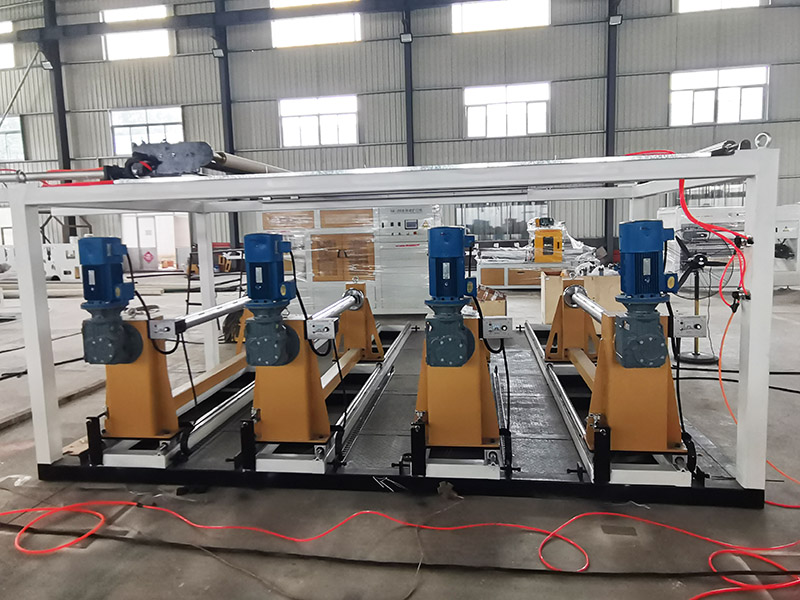

PET sheet winding machine machine

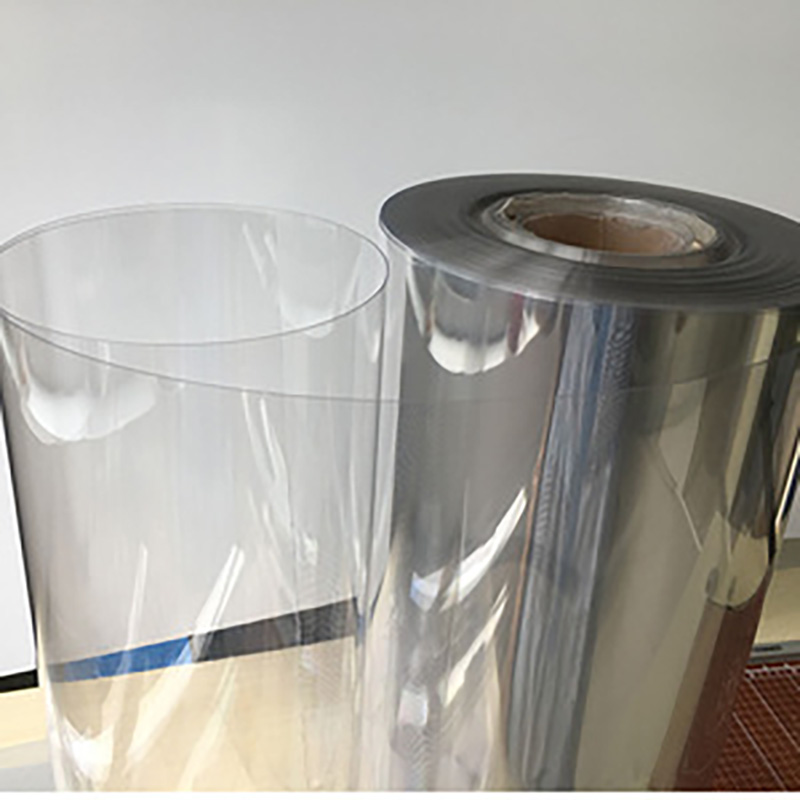

PET sheet production line final product:
